Offering 200 Watts per channel and 14 total inputs, the space-saving MA7200 Integrated Amplifier can easily become the core of your 2-channel home audio system.
Making up its 14 inputs are 8 analog connections (5 unbalanced, 1 balanced and 1 each of Moving Coil and Moving Magnet inputs for turntables) along with 6 digital (2 each of coaxial and optical plus 1 USB and 1 proprietary MCT for use with our MCT500 SACD/CD Transport). The digital inputs are housed in our DA1 Digital Audio Module, which can easily be replaced by future modules to keep your MA7200 current with the latest digital audio technologies. (NOW AVAILABLE: Optional dealer installed upgrade to the DA2 Digital Audio Module.) The DA1 comes with an 8-channel, 32-bit Digital-to-Analog Converter (DAC) used in Quad Balanced mode. The USB input accepts PCM signals up to 32-bit/384kHz and supports up to DSD256 and DXD 384kHz for high resolution audio playback, while the coax and optical inputs will decode music up to 24-bit/192kHz. All inputs can be given custom names for user-friendly system control and configuration.
"A very elegant sounding amplifier with a lot of power in reserve... a hefty amplifier that is capable of great things and a lot more than just brute force, the MA7200 doesn’t just look the part, it sounds the part!" - HiFi+

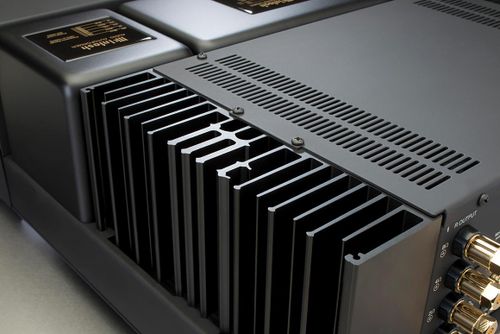

The MA7200 includes our Monogrammed Heatsinks™ which are so efficient at dissipating heat that they warrant bearing the McIntosh “Mc” logo. They are connected to advanced high current output transistors that eliminate warm-up time so you can enjoy the MA7200’s full sonic capabilities from the moment you turn it on. The MA7200 is full of other McIntosh technologies including Autoformers™ to deliver the full 200 Watts to each of your speakers regardless of their impedance, Power Guard®, Sentry Monitor™, Home Theater PassThru, bass and treble tone controls, High Drive headphone amplifier with Headphone Crossfeed Director (HXD®), and gold-plated speaker binding posts.
The MA7200 is one of many McIntosh products to receive Roon Tested designation from Roon Labs. It has been profiled and tested by both Roon and McIntosh for maximum compatibility. Roon will recognize it and send it audio optimized for its capabilities. No fiddling with checkboxes or dropdowns, Roon Tested devices are automatically identified and configured out of the box for a superior customer experience.

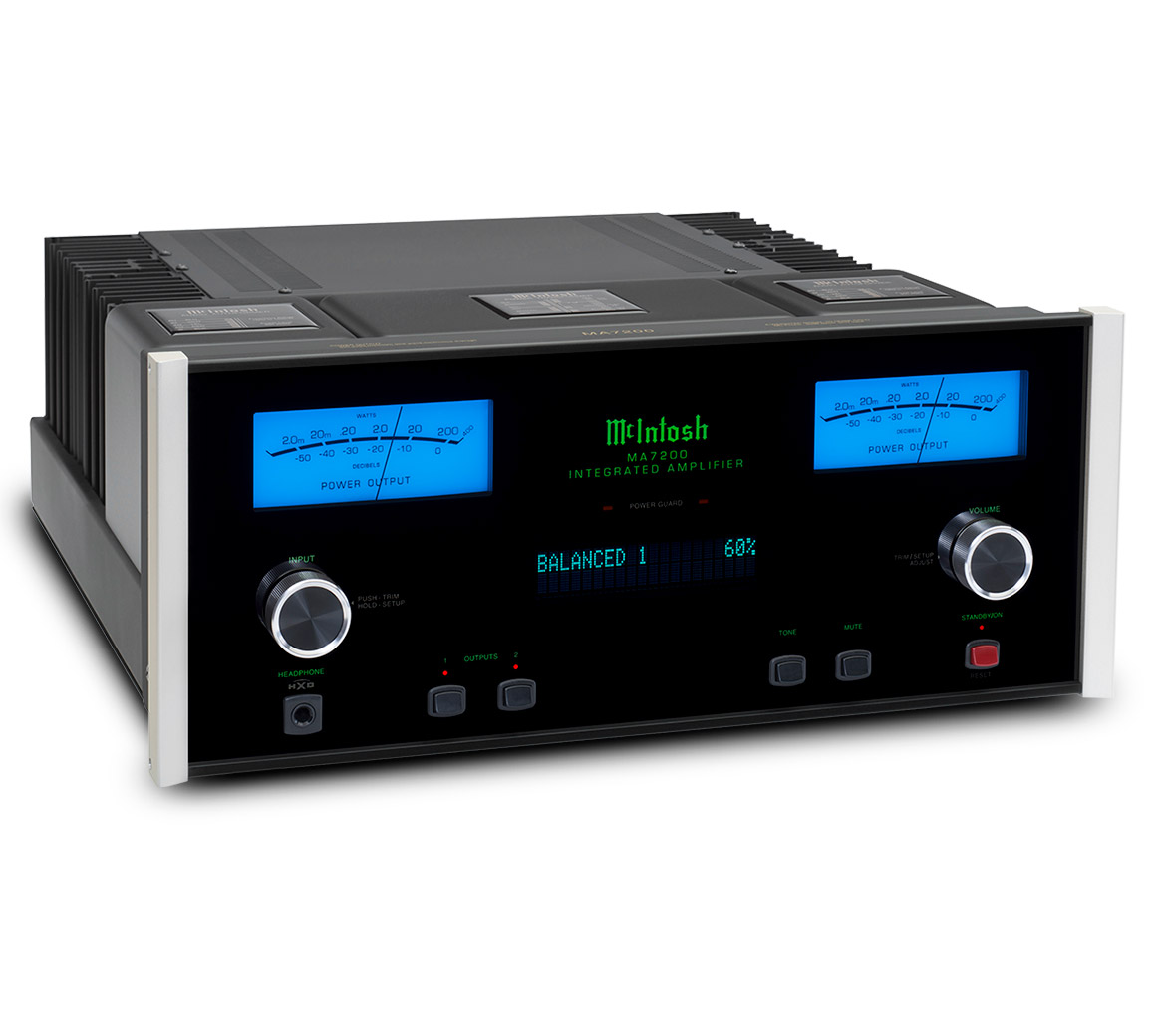

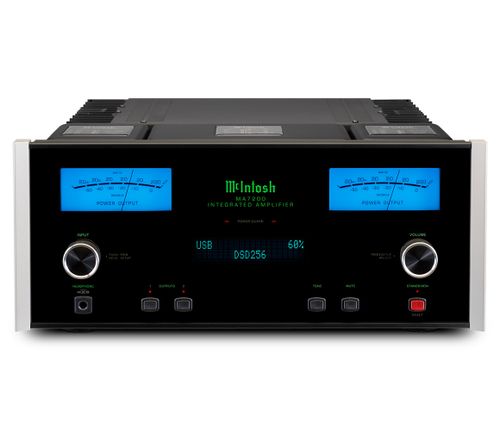

The entire unit is wrapped in the timeless McIntosh appearance with blue watt meters, a black glass front panel with aluminum end caps, control knobs and illuminated logo. Contact your local dealer to learn more.
MA7200 is not available in the US and Canada. (US and Canada please see the MAC7200 Receiver.)
ELECTRONIC SPECIFICATIONS
Power Output per Channel
200 Watts
Number of Channels
2
Speaker Impedance
2, 4, or 8 Ohms
Rated Power Band
20Hz to 20kHz
Total Harmonic Distortion
0.005%
Dynamic Headroom
2dB
Frequency Response +0,-0.5dB
20Hz to 20kHz
Frequency Response, +0, -3dB
10Hz to 100kHz
Sensitivity Phono (Moving Coil)
0.25mV
Sensitivity Phono (Moving Magnet)
2.5mV
Sensitivity High Level (Balanced / Unbalanced)
0.5V/0.25V
Sensitivity (Power Amp input)
1.4V
Signal To Noise Ratio (Moving Coil)
80dB
Signal To Noise Ratio (Moving Magnet)
82dB
Signal To Noise Ratio (High Level)
95dB
Signal To Noise Ratio (Power Amp input)
113dB
Input Impedance (Balanced / Unbalanced)
20K/20K
Damping Factor
>40
Maximum Output (Balanced / Unbalanced)
8V Unbalanced
CONNECTIVITY
Balanced Input
1
Unbalanced Input
5
Phono Input Moving Coil
1 (adjustable loading)
Phono Input Moving Magnet
1 (fixed loading)
Upgradeable Digital Audio Module
Yes
Digital Coaxial Input
2
Digital Optical Input
2
Digital MCT (DIN) Input
1
Digital USB Input
1
Balanced Variable Output
0
Unbalanced Fixed Output
0
Unbalanced Variable Output
2
Headphone Output
1/4" High Drive with Headphone Crossfeed Director (HXD®)
Subwoofer Output
0
AM/FM Tuner option
No
Home Theater PassThru
Yes
Unbalanced Analog Connector Type
Standard
Speaker Binding Post Type
Standard
Service Port
1
DIGITAL AUDIO SPECIFICATIONS
Digital-to-Analog Converter (DAC) Type
8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
Digital Coaxial Input Sample Rate
24-bit/44.1kHz to 192kHz
Digital Optical Input Sample Rate
24-bit/44.1kHz to 192kHz
Digital MCT (DIN) Input Sample Rate
16-bit/44.1kHz (CD)
DSD64 (SACD)
Digital USB Input Sample Rate
32-bit/44.1kHz to 384kHz (PCM)
DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz
CONTROL
Tone Controls
Bass and Treble
Tone Bypass and Input Assign
Yes
RS232 Control Input
Yes
Power Control Output
1 Main, 2 Trigger
Rear Panel Data Port
4
Rear Panel IR Sensor Input
Yes
Input Level Match
Yes
GENERAL SPECIFICATIONS
Vacuum Tube or Solid State
Solid State
Output Type
Autoformer™
Output Meters
Yes
Dual Layer Chassis
Yes
Chassis Finish
Black painted steel
McIntosh Monogrammed Heatsinks™
Yes
Power Requirement
120V 50/60Hz, 4.4 amps
Standby Power Requirement
<0.25 Watts
WEIGHTS & DIMENSIONS
Dimensions (W x H x D)
17-1/2" (44.45cm) x 7-5/8" (19.37cm) x 22" (55.88cm)
Weight
75 lbs (34.1 kg)
Shipping Weight
93 lbs (42.3 kg)
