Spec description
Turntable section
Type Belt Drive
Motor DC Motor
Rotation Speeds 33-⅓, 45, 78 rpm
Wow-and-Flutters 0.2%
S/N Ratio more than 67dB (A-weighted)
60dB (unweighted, 20kHz, LPF)
Turntable (Platter) Material Aluminum Die-cast
Diameter 30cm
Tone-arm section Type S-shaped, Static-balanced
Effective Length 223mm
Needle Pressure Range 0g to 5g
Compatible Cartridge Weight 4g to 8g14g to 18g (including Head-shell)
Head-shell and Cartridge sections Model of Cartridge audio-technica AT95E
Type of Cartridge MM-type (VM-type)
Frequency Response 20Hz to 20,000Hz
Output Voltage 3.5mV (1kHz, 5cm/sec.)
Channel Separation 20dB (1kHz)
Output Balance 2.0 dB (1kHz)
Needle Pressure 1.5g to 2.5g (appropriate value: 2.0g)
Needle Life approx. 300 hours (depends on conditions)
Coil Impedance 2.8kohms (1kHz)
DC Resistance 410ohms
Loading Resistance 47kohms
Loading Capacity 100 to 200pF
Coil Inductance 400mH (1kHz)Static Compliance 20 × 10-6cm/dyne
Dynamic Compliance 6.5 × 10-6cm/dyne (100Hz)
Needle Shape Joint-oval 0.3 × 0.7mil
Cantilever Aluminum PipeVertical Tracking Degree 20 degrees
Overall Dimensions 17.0(W) × 17.2(H) × 30.5(D) mm
Weight 5.7 gHead-shell Weight 10g (including nuts, screws, and wires)

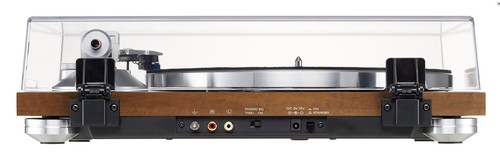

Analog Output section
Connectors RCA jack × 1 pair (Gold-plated)
Output Voltage PHONO 3.5mV +/-3dB
LINE 155mV (-16dBV)

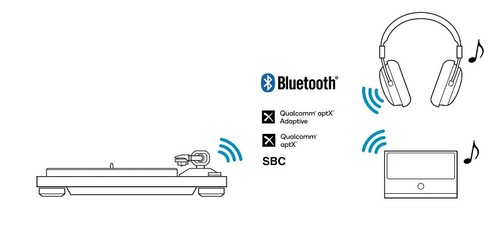

Bluetooth® section
Bluetooth version 5.2 (DUAL MODE)
Profile A2DP
Codecs SBC, Qualcomm® aptX™ audio, Qualcomm® aptX™ Adaptive
Operation Power AC Adapter Input AC 100 - 240V, 50/60Hz
AC Adapter Output DC 12V 500mA
Power Consumption 1.5W or less
Standby Power 0.5W or less
Dimensions (including protrusions) 420(W) × 117(H) × 356(D) mm /16.5"(W) × 4.6"(H) × 14.0"(D)
Weight 4.9kg / 10.8lbs
Operating temperature range 5°C to 35°C
Included Accessories Felt Mat, EP Adapter, Counter Weight, Headshell (audio-technica AT95E installed), Platter, Dust Cover, Dust Cover Hinges × 2, RCA Audio Cable with GND wiring, AC Adapter (GPE053A-V120050-Z), Owner's Manual (including Warranty Card)
