Technical Information
Drive System
Direct Motor
16-pole, 12-coil, brushless motor
Control method
PWM Vector
Platter
Aluminum diecast (305mm)
Platter inertia
382 kg/CM^2
Wow Flatter
less than 0.06% JIS
Speed tolerance
less than ± 0.3%
Rumble (S/N ratio)
Over 70dB
Bearing Type
Miniature Steel ball bearing

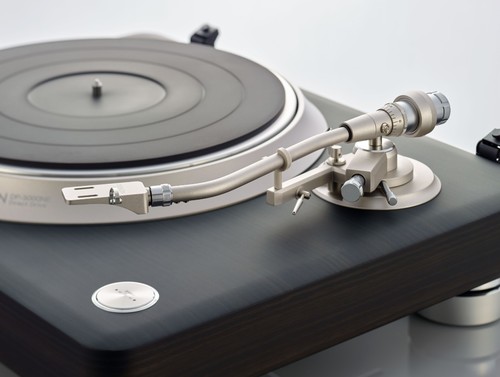

Tone Arm
Static Balanced S-Shaped
Arm length
244 mm
Overhang
14 mm
Offset angle
20.5 °
Tracking error angle
2.5° (Max.)
Suitable cartridge weight
4 to 16g without sub weight
14 to 26g with sub weight
Stylus force adjustment
0 - 2.5g /rotation
High adjustment range
9mm
Anti-skating adjustment
0-3g
Headshell material
Aluminum
Sensitivity (Horizontal)
30mg
Sensitivity (Vertical)
30mg
Operation
Manual
Speed
33 1/3 / 45 / 78 rpm
Control
Start / Stop
