Amplifier section
Maximum output power Stereo, Bi-amp modes 130W + 130W (4Ω, 1kHz, JEITA)
90W + 90W (8Ω, 1kHz, JEITA)
BTL (Bridge) mode 250W (8Ω, 1kHz, JEITA)
Rate output over Stereo, Bi-amp modes 115W + 115W (4Ω, 1kHz, THD 0.8%)
70W + 70W (8Ω, 1kHz, THD 0.8%)
BTL (Bridge) mode 220W (8Ω, 1kHz, THD 0.8%)
Total harmonic distortion 0.0015% (8Ω, 1kHz, 12.5W, JEITA)
Signal-to-Noise ratio 113dB (8Ω, 1kHz, IHF-A)
Frequency response 10Hz to 50,000Hz (+0dB, –5dB, 8Ω, 1W, JEITA)
Dumping factor 370 or higher, JEITA (20Hz to 20kHz, Output impedance: 22mΩ, 8Ω loaded)

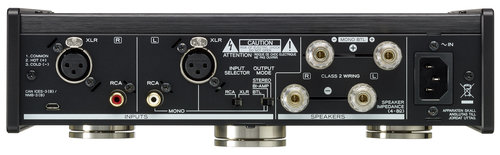

Input section LINE IN (Balanced) Connector XLR (2: HOT) × 1 pairInput sensitivity 1.3V (Output 8Ω, THD 1%)
Input impedance 10kΩ or higher
LINE IN (Unbalance) Connector RCA Pin (gold-plated) × 1 pair
Input sensitivity 0.66V (Output 8Ω, THD 1%)
Input impedance 10kΩ or higher
Speaker outputs Connector Screw type × 1 set (gold-plated, AWG8 and Banana-plug compatible)
Compatible speaker impedance Stereo, Bi-amp modes 4Ω to 16Ω
BTL (Bridge) mode 8Ω to 16ΩPower AC120V, 60Hz AC220 - 240V, 50/60Hz
Power consumption 106W
Standby power 0.1W or less (at Auto power-saving mode)
Overall dimensions 290 × 84.5 × 271 mm / 11.4" × 3.3" × 10.7" (W × H × D)
Weight 4.4kg / 9.7 lbs.Included accessories Power code, Owner's manual (incl. Warranty card)
