Amplifier section Practical maximum output 260W + 260W (4Ω, 1kHz, JEITA)
170W + 170W (8Ω, 1kHz, JEITA)
Rated output 230W + 230W (4Ω, 1kHz, THD 1%)
125W + 125W (8Ω, 1kHz, THD 1%)
Total harmonic distortion 0.003% (8Ω, 1kHz, 55W, JEITA)
S/N ratio 110dB (8Ω, 1kHz, IHF-A)
Frequency response 10Hz to 50,000Hz (+0dB, –6dB, 8Ω, JEITA)

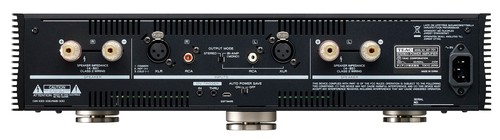

Analog audio inputs Balanced Connectors XLR (HOT: 2) × 1 pair
Input sensitivity 1.6VInput impedance 64kΩ (in STEREO mode), 32kΩ (in BI-AMP mode)
Unbalanced Connectors RCA (gold-plated) × 1 pairInput sensitivity 1.6V
Input impedance 32kΩ (in STEREO mode), 16kΩ (in BI-AMP mode)
Speaker output Connectors Screw type × 1 pair (gold-plate, compatible with Banana plug)
Compatible speaker impedance 4Ω to 8ΩExternal control Trigger input (12V TRIGGER IN) Connector 3.5mm Mono mini jack × 1Input level 12V, 1mA
Trigger output (12V TRIGGER THRU) Connector 3.5mm Mono mini jack × 1Power AC120V, 60HzAC220 - 240V, 50/60Hz
Power consumption 210W
Standby power 0.4W
Overall dimensions 444 (W) × 111.3 (H) × 348.2 (D) mm (including protrusions)
Weight 9.9kg
Operating Temperature ＋5℃ to ＋35℃
Operating Humidity Range 5% to 85% (no condensation)
Storage Temperature Range –20℃ to ＋55℃
Included accessory Power cord, Foot pad × 3, Owner's manual
