Turntable section Drive system Rotation-detection-type high-precision control belt drive
Motor DC motorRotation speed 33-⅓rpm, 45rpm, 78prm
Wow and flutter 0.1% or lessPlatter Acrylic, 30cm diameter

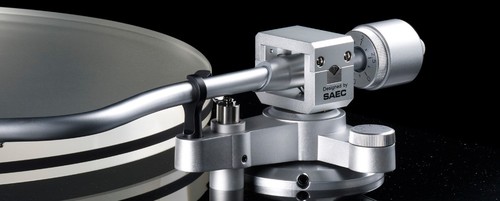

Tonearm section Arm type Static-balanced S-shaped tone arm
Effective arm length 223mm
Suitable cartridge weight 3.0 to 12.0g (14 to 23 g including head-shell)
Overhang 18mmArm height adjustment range approx. 6mm

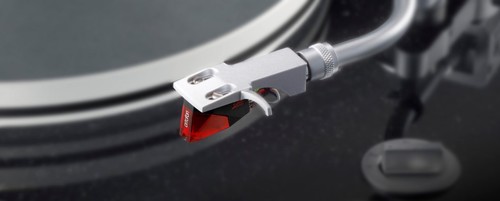

Cartridge section Type MM
Output voltage 5.5 mV (1kHz, 5cm/s)Tracking force 1.8g
Cartridge weight 7.2gIncluded head-shell weight: 11g (including screws, nuts and wires)
Replacement record stylus model Ortofon 2M Red • Stylus lifespan depends on use conditions but is usually about 1000 hours.

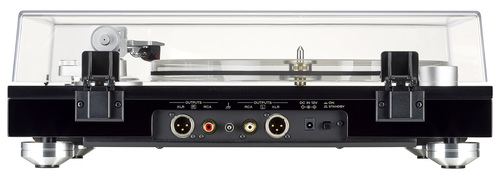

Phono Outputs Balanced Connector XLR × 1 pairUnbalanced Connector RCA × 1 pairPower AC 100 to 240V, 50/60Hz (AC Adapter)
Power Consumption 2.0W or less (0.3W at Standby)
Overall Dimensions (W×H×D) 450 × 148 × 351 mm / 17.1" × 5.8" × 13.8" (with dust cover closed)450 × 420 × 410 mm / 17.1" × 16.5" × 16.1" (with dust cover open)450 × 135 × 351 mm / 17.1" × 5.3" × 13.8" (with dust cover removed)
Including protrusions (when arm holder at the highest position)
Weight approx. 10.5kg / 23.2 lbs.Included accessories 45RPM adapter × 1, Counter Weight × 1, Head-shell (Ortofon 2M Red installed) × 1, Platter × 1, Flat Belt × 1, Pulley Cover × 1, Dust Cover × 1, Hinge × 2, Foot height adjustment washers × 4, Arm height adjustment hex wrench × 1, RCA Audio Cable × 1, Ground wire × 1, AC Adapter (GPE018S-120100-Z) × 1, Cartridge Alignment Gauge × 1, User Manual × 1
