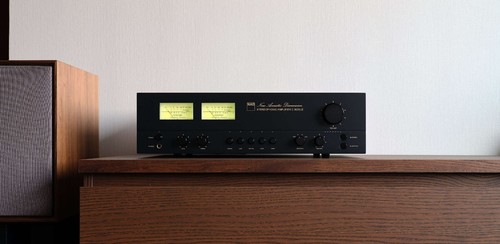

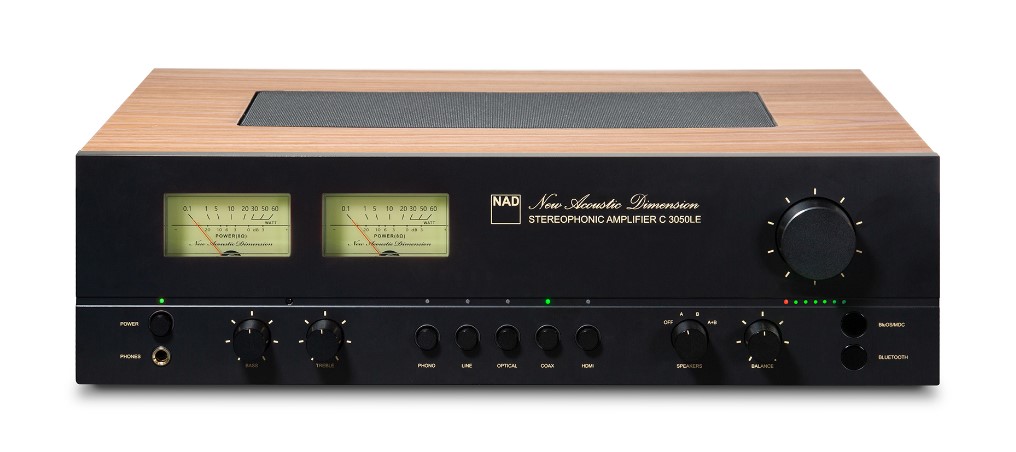

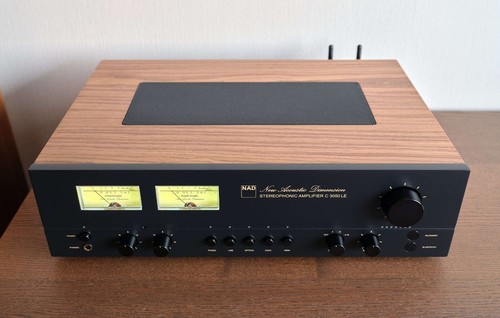

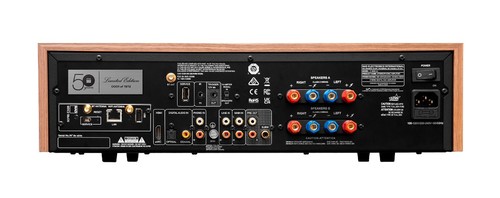

NAD C3050

• THD (20 Hz – 20 kHz)
• <0.005 % at 2V out
• Signal-to-Noise Ratio
• >95 dB (IHF; A-weighted, ref. 500 mV out, unity gain)
• Channel separation
• >100 dB (1 kHz)
• >90 dB (10 kHz)
• Input impedance (R and C)
• 28 kohms + 360 pF
• Maximum input signal
• >4.5 Vrms (ref. 0.1 % THD)
• Output impedance
• 440 ohms
• Input sensitivity
• 270 mV (ref. 500 mV out, Volume maximum)
• Frequency response
• ±0.3 dB (20 Hz – 20 kHz)
• Maximum voltage output -IHF load
• >2 V (ref. 0.1 % THD)

• THD (20 Hz – 20 kHz)
• <0.03% at 2 V out
• Signal-to-Noise Ratio
• >79 dB (200 ohms source; A-weighted, ref. 500 mV out)
• Input Impedance (R and C)
• 46 kohms/100 pF
• Input sensitivity
• 5.5 mV (ref. 500 mV out, Volume maximum)
• Frequency response
• ±0.3 dB (20 Hz – 20 kHz)
• Maximum input signal at 1kHz
• >80 mVrms (ref. 0.1 % THD)

• THD (20 Hz – 20 kHz)
• <0.005% at 1V out
• Signal-to-Noise Ratio
• >96 dB (32 ohms loads; A-WTD, ref. 2 V out, unity gain
• Frequency response
• ±0.3 dB (20 Hz – 20 kHz)
• Channel separation
• >60 dB at 1kHz
• Output impedance
• Output impedance

• Supported audio file format
• MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
• Supported high- resolution audio file format
• FLAC, MQA, WAV, AIFF
• Sampling rate
• up to 192 kHz
• Bit depths
• 16 – 24

• Music Services
• Click here
• Internet Radio
• Click here
• Integration partners
• Control4, Crestron, ELAN, Lutron, Push, Roon, RTI, URC
• Voice Control
• Skills and support for Amazon Alexa and Apple’s Siri with corresponding enabled devices and App

• Network connectivity
• Gigabit Ethernet RJ45
• Wi-Fi 5
• Supported network file share protocol
• Server Message Block (SMB)
• USB
• 1 x Type-A port for connection to USB memory stick (FAT32 or NTFS formatted) and supported peripherals
• Bluetooth quality
• aptX HD 5.0
• Bluetooth connectivity
• Two-Way (Receive and Headphone modes)

• Supported operating system
• Music playback from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and macOS versions
• Mobile Application
• Free BluOS Controller App available for download from the respective App stores of Apple iOS devices (iPad, iPhone and iPod), Android devices, Kindle Fire and Windows or macOS desktops

• Continuous output power into 8 ohms and 4 ohms
• 100W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
• THD (20 Hz – 20 kHz)
• <0.03% (250 mW to 100 W, 8 ohms and 4 ohms)
• Signal-to-Noise Ratio
• >95dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
• Clipping power
• >115 W (at 1 kHz 0.1 % THD)
• IHF dynamic power
• 8 ohms: 180 W
• 4 ohms: 250W
• 2 ohms: 300 W
• Peak output current
• >20A (in 1 ohm, 1 ms)
• Frequency response
• ±0.3 dB (20 Hz – 20 kHz)
• Channel separation
• >75dB (1 kHz)
• >70dB (10 kHz)
• Input sensitivity (for 100 W in 8 ohms)

• 540 mV

  Digital: -6dBFS

• Power consumption – at Auto Standby ON and Network Standby OFF
• 0.5 W*
• Power consumption – at Auto Standby ON and Network Standby ON
• 2.0 W**
• Power consumption – OFF mode (Power switched OFF)
• 0.1 W
• Frequency band
• 2.402G- 2.480G

• Gross dimensions (W x H x D) ****

• 450 x 110 x 355mm

  17 1/4 x 4 3/8 x 14 inches

• Net weight
• 10 kg (22 lbs)
• Shipping weight
• 12.6 kg (27.8 lbs)

* – After 20 minutes of no user interface interaction and no active source input

** – With established wired or wireless network connection, wireless Bluetooth connectivity and no user interface interaction and no active source input for 20 minutes

*** – Supported services may vary over time. Inquire via support.bluos.net for updated list.

**** – Gross dimension includes feet, volume knob and extended front and rear panel terminals.
