Features
Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
Motor features a speed-sensor system to maintain accurate platter rotation speed
Adjustable dynamic anti-skate control
Professional anti-resonance, die-cast aluminum platter with rubber mat
AT-HS4(silver) universal 1/2"-mount headshell and AT-VM95E (black) Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus
The AT-VM95Ecartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application

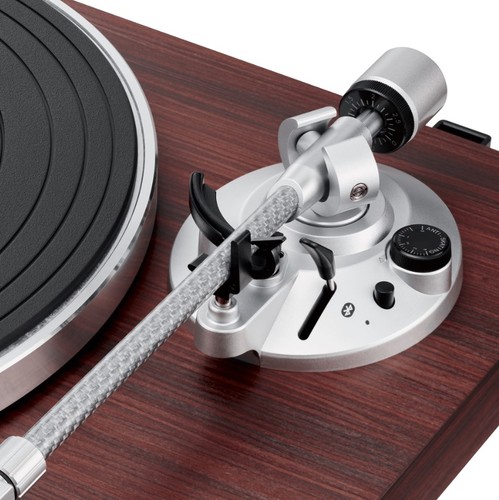

Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest
Anti-resonance 30 mm thick MDF (medium density fiberboard) plinth with rosewood-finished wood veneer

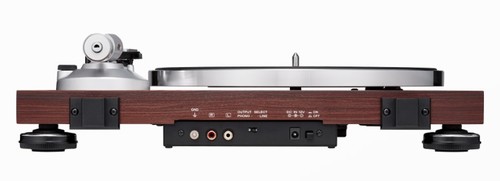

Built-in switchable phono pre-amplifier for phono or line-level output
AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover
Specifications
Turntable
Type Belt-drive manual turntable
Motor DC servo with Active Speed Stabilization
Drive Method Belt drive
Speeds 33-1/3 RPM, 45 RPM
Turntable Platter Die-cast aluminum
Wow and Flutter < 0.15 % WRMS (33 RPM) at 3 kHz
Signal-to-Noise Ratio > 60 dB
Output Level PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec
LINE: 200 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain 35 dB nominal, RIAA equalized
Power Supply Requirements 100 to 240 V, 50/60 Hz, 0.5 A Max
Power Consumption 1.8 W
Dimensions 420 mm (16.54") x 340 mm (13.39") x 126 mm (4.96") (W x D x H)
Weight 5.5 kg (12 Ibs)
Accessories Included
• Dust cover
• Rubber mat
• Platter (with drive belt)
• Dust cover hinges
• Counterweight
• Headshell (AT-HS4 SV) with VM stereo cartridge (AT-VM95EBK)
• 45-RPM adapter
• RCA audio cable (Approx. 1.0m (3.3'))
• AC adapter (Approx. 1.5m (4.9'))
AC Adapter 12 V, 1.0 ATonearm Type Static balanced straight carbon tonearm
Effective Arm Length 223.6 mm
Overhang 18.6 mm
Tracking Error Angle Less than 2.0°
Stylus Pressure Adjustment Range 0 to 3.0 g
Applicable Cartridge Weight (including headshell) 11.5 to 16.5 g
Replacement Stylus AT-VMN95EBK (sold separately)
Replacement Headshell AT-HS4 SV (sold separately)
Replacement Belt AT-LPW50BT exclusive belt (sold separately)
Communication System Bluetooth version 5.2Frequency Band 2.402 GHz to 2.480 GHz
Maximum RF Output 15 mW EIRPMaximum Communication Range Line of sight - approx. 10 m (33')Modulation Method GFSK, Pi/4DQPSK, 8DPSKCompatible Bluetooth Profile A2DPSupport Codec SBC
