Features
Experience the high-fidelity audio of vinyl
Direct-drive, DC servo motor
Fully manual operation
Adjustable dynamic anti-skate control
Selectable 33/45/78 RPM speeds
Professional-grade anti-resonance, die-cast aluminum platter with felt mat

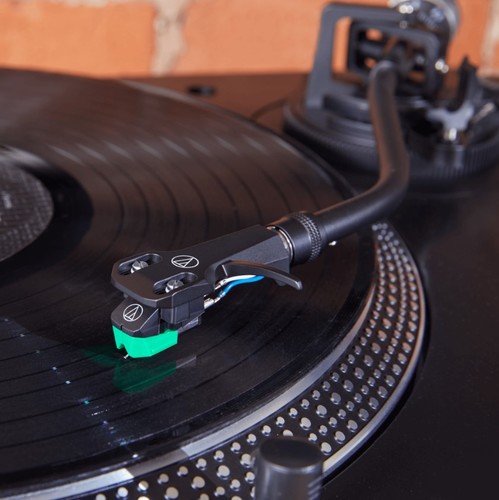

AT-HS6 universal ½"-mount headshell and AT-VM95E Dual Magnetic phono cartridge with 0.3 x 0.7 mil elliptical stylus
AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
Balanced S-shaped tonearm with hydraulically damped lift control and lockable rest
Built-in switchable phono pre-amplifier for phono- or line-level output
Stroboscopic platter with speed indicator
Variable pitch control with quartz speed lock
Removable plug-type target light for easier cueing in low light
Damped base construction for reduced low-frequency feedback coloration
AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
Convert your vinyl records to digital audio files by downloading and using the free Mac- and PC-compatible Audacity recording software (or software of your choice)
Includes: USB cable, detachable RCA output cable (dual RCA male to dual RCA male), AC adapter, 45 RPM adapter, counterweight, felt mat, and removable hinged dust cover
Specifications
TurntableType 3-speed, fully manual operationMotor DC servo motor
Drive Method Direct driveSpeeds 33-1/3 RPM, 45 RPM, 78 RPM
Turntable Platter Die-cast aluminum
Starting Torque >1.0 kgf.cm
Braking System Electronic brake
Wow and Flutter <0.2% (WTD) @ 3 kHz (JIS)
Signal-to-Noise Ratio >50 dBOutput
Level Pre-amp "PHONO": 4 mV nominal at 1 kHz, 5 cm/sec
Pre-amp "LINE": 240 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain 36 dB nominal, RIAA equalized
USB Function A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable;Computer interface – USB 1.1 Compliant Windows 7 or above, or MAC OS X or above
Power Supply Requirements 100 to 240 V, 50/60 Hz, 1.5A Max.
Dimensions 452.0 mm (17.80") W x 352.0 mm (13.86") D x 141.6 mm (5.57") HWeight 8 kg (17.6 lbs.), without dust cover
Accessories Included AT-VM95E phono cartridge; AT-HS6 headshell; 1.9 m (6.2') USB cable; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter; plug-type stylus target light
Notes Tonearm type: Balanced S-shaped tonearm with detachable headshellEffective arm length: 230.5 mmOverhang: 16 mmTracking error angle: Less than 3 degreesApplicable cartridge weight: 3.5-8.5 gAnti-skating range: 0-4 gReplacement Stylus: AT-VMN95E
USB operation system requirementsPC or Mac with an available USB port (USB1.1 or higher)Windows 7 or above, or Mac OS X or above
