| Operating System: |
Customized Android 7.1 based Rose OS Ver 1.22.4 |
| Exterior |
|
| Dimensions: |
430(W) x 316(D) x 123(H) mm |
| Weight: |
13 kg |
| Materials: |
Luxurious finish and minimal vibration by cutting all-aluminum |

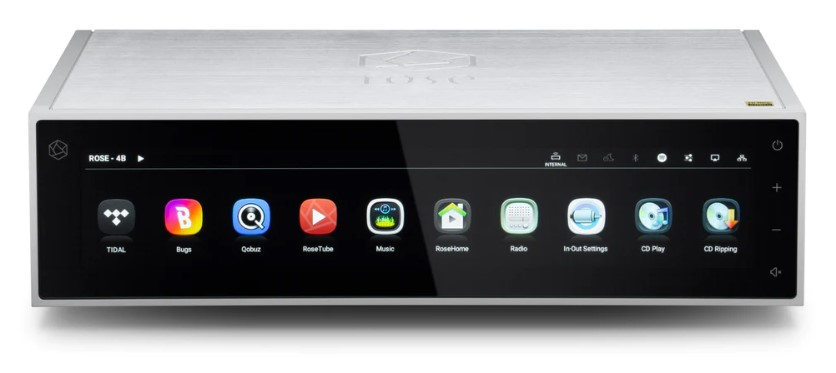

| Display: |

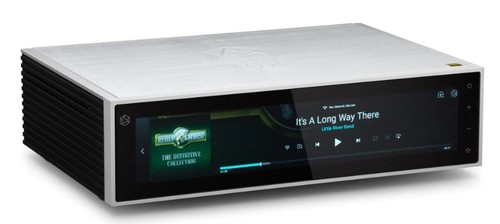

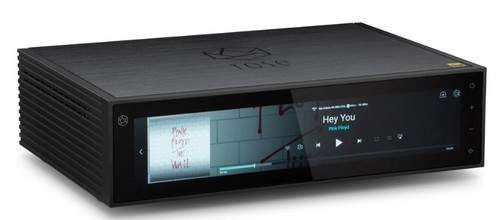

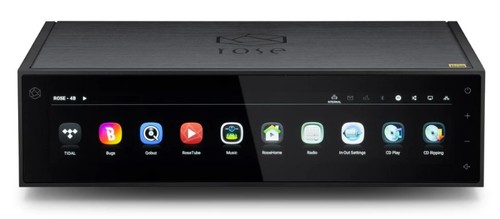

Front 14.9" HD class IPS LCD adoption |
| CPU: |
Hexa Core CPU
Dual-core Cortex-A72 up to 1.8GHz
Quad-core Cortex-A53 up to 1.4GHz |
| GPU: |
Mali-T864 GPU, OpenGL ES 1.1/2.0/3.0/3.1, OenVG1.1, OpenCL, DX11 |
| Memory: |
LPDDR3 4GByte |
| DAC Chip: |
ESS Technology, SABER ES9038PRO |
| Output Level: |
6.5Vrms (Balanced),
2.2Vrms (Unbalanced) |
| THD: |
0.0002%(Balanced,1KHz 6.5Vrms),
0.0003%(Unbalanced,1KHz 2.2Vrms) |
| THD + N: |
0.0003%(Balanced, 1KHz 6.5Vrms),
0.0004%(Unbalanced, 1KHz 2.2Vrms) |
| IMD: |
-103dB (Balanced), -103dB (Unbalanced),
SMPTE 4:1, 60Hz:7kHz |
| Signal to Noise Ratio: |
121dB (Balanced), 118dB (Unbalanced),
A-wt |
| Dynamic Range: |
Max 132 dB (CCITT filter) |
| Stereo Crosstalk: |
Max -138dB, 20-20kHz |
| Output Frequency Response: |
20Hz to 40,000 (+/-0.5dB) |
| Output Impedance: |
50Ω |
| Network Connection |
|
| Network Support: |
Wired: Ethernet 10/100/1000 BASE-T
Wireless: External USB type WiFi dongle supported. |
| Bluetooth: |
BT : Supports external USB type BT dongle. ( A2DP Sink, AVRCP v1.3 )
* Use of some WiFi and BT dongle products may be restricted. |
| Audio Services: |
|
| Streaming: |
Airplay / DLNA / Roon Ready / MQA Full Decoder |
| Music Service: |
TIDAL / Internet Radio / Podcast |

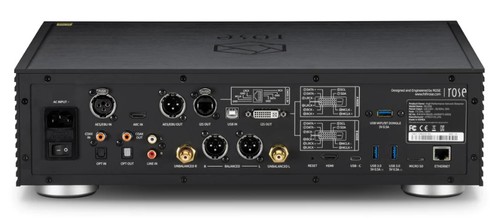

| Input/Output |
|
| Audio Input: |
Optical x 1, COAX x 1, Line-IN x 1, AES/EBU x 1, HDMI ARC x 1, USB DAC mode x 1 |
| Audio Output: |
OOptical x 1, COAX x 1, Pre-OUT (Balanced x 1, Unbalanced x 1), I2S-DVI x 1, I2S-RJ45 x 1, AES/EBU x 1 |
| Video Output: |
HDMI 2.0x 1 ( up to 3840 x 2160 / 60Hz ) |
| Media Connection: |
File System: SMBv1, SMBv2 /FTP / WebDav / NTFS / eXfat / FAT32
Storage Interface: USB3.0 x 2, MicroSD x 1, SSD x 1 |
| Supported Codex |
|
| Audio: |
MQA, WAV, FLAC, AIFF, WMA, MP3, OGG, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A
PCM: 8KHz~768KHz (8/16/24/32bit per Sample)
Native DSD: DSD64(2.8MHz)/DSD128(5.6MHz)/DSD256(11.2MHz)/DSD512(22.5792Mhz) |
| Video: |
ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4 H.263, H.264, H.265, VC-1, VP9, VP8, MVC
H.264/AVC, Base/ Main/High/High10 profile@level5.1 up to 4Kx2K@30fps H.265
/HEVC, Main/Main10 profile@ level 5.1 High-tier up to 4Kx2K@60fps |
| Power: |
Input Voltage : AC100-230V 50/60Hz
Input Power : 55W Fuse : T3.0AL/250V |
| Update: |
Software update via Internet, USB OTA, Rose Store |
| Remote Control |
|
| Remote Control: |
bluetooth remote control |
| Remote App: |
ROSE Connect (Android, iOS) / Google PlayStore, App Store |
| Accessories: |
Power cord x 1, Bluetooth remote control x 1 (AAA battery x 2 included), Simple manual x 1,
SSD mounting screw x 4, Bluetooth/Wi-Fi dongle x 1 |
