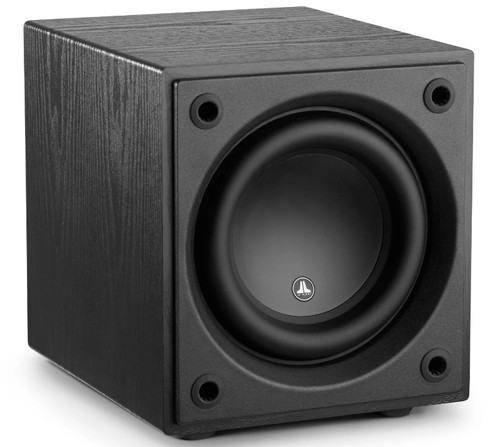

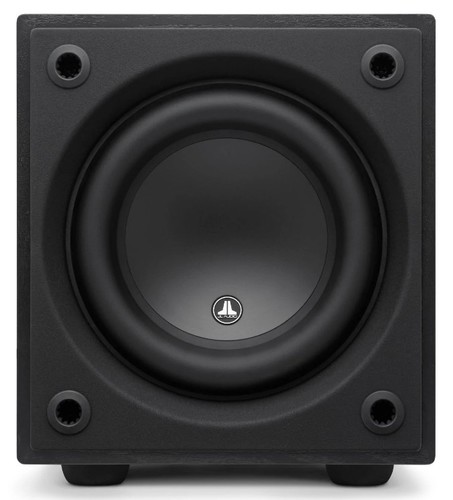

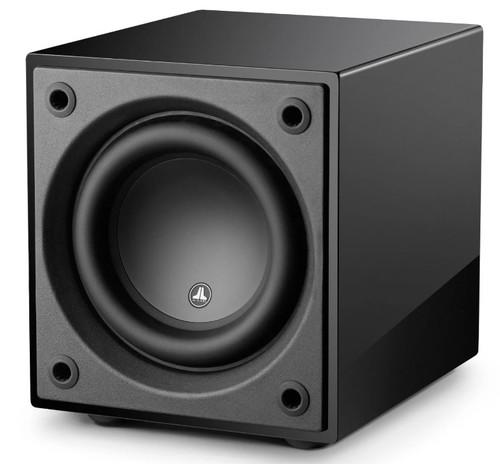

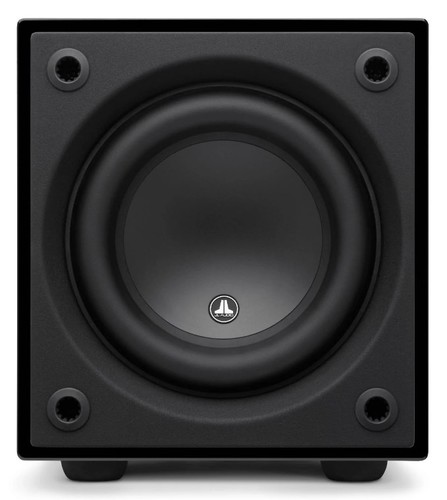

Powered Subwoofer with 8-inch Subwoofer, 500 watts
Born from JL Audio’s vast collection of advanced technologies, Dominion® powered subwoofers combine a state-of-the-art Subwoofer and an advanced Class D amplifier to deliver unmatched performance and value for a wide variety of compact applications.

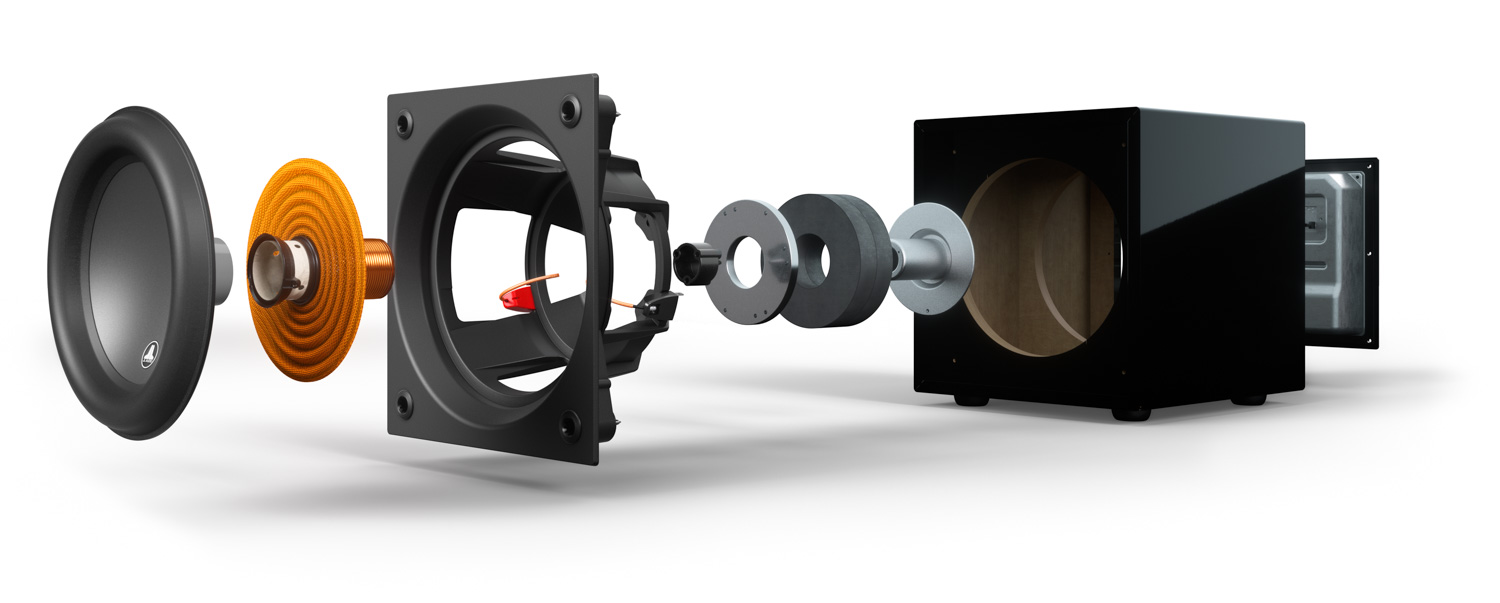

Purpose-built to reproduce powerful low-frequency events with stunning impact and precision, the Dominion® driver employs JL Audio’s exclusive DMA (Dynamic Motor Analysis) technology to produce higher output levels with reduced distortion, as well as improved dynamic tracking and resolution. As a result, Dominion® subwoofers are capable of peak-to-peak excursions well in excess of 2.5-inches (63 mm - d108), and 2.7 inches (68 mm – d110), without distress or audible distortion.
Dominion® amplifiers utilize an advanced Class D design in order to extract the most from the long-excursion driver platform. This design features a tightly regulated switching power supply, allowing the amplifier to generate prodigious amounts of unclipped output voltages. These technologies ensure that the Dominion® powered subwoofers remain in their comfort zone, which is well beyond the point where most small subwoofers run out of power or driver capability.

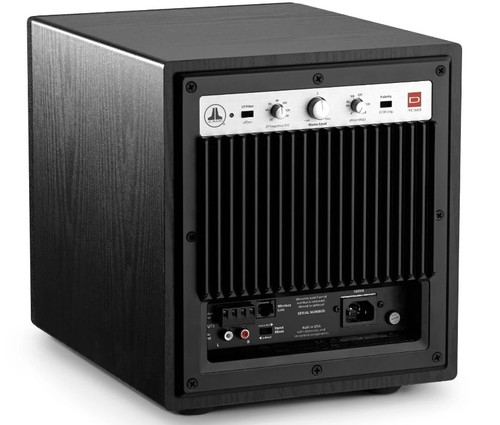

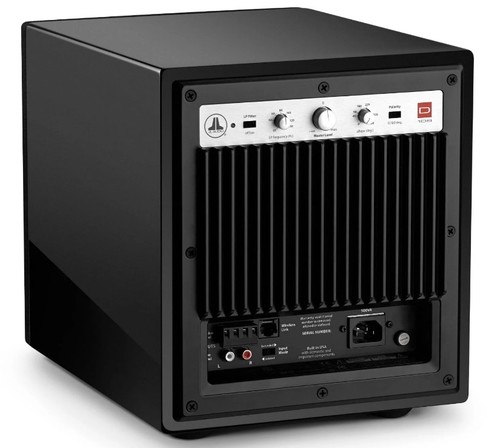

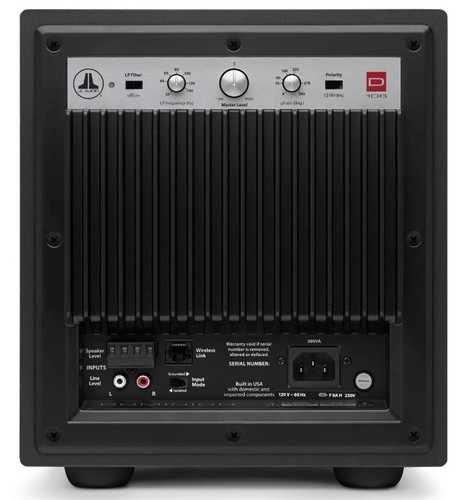

With a host of signal processing features included, Dominion® powered subwoofers can be integrated into most systems with ease. Low-pass signals are precisely guided, thanks to the onboard crossover’s 24 dB/octave Linkwitz-Riley alignment. Phase and polarity controls are onboard to aid in achieving the optimal acoustic transition between the subwoofer(s) and main speakers. Flexible input options are on-hand to accept either line-level or speaker-level signals. Connect a JLINK™ TRX system (sold separately) to the onboard Wireless Link port and enjoy the freedom to position your Dominion® almost anywhere, up to 100 feet (30 meters) away from your source unit.
To contain the immense pressures created by the Dominion® driver, each beautiful cabinet is carefully engineered and constructed using solid, CNC-cut, MDF material with extensive internal bracing and advanced assembly techniques. All Dominion® powered subwoofers are built with pride and precision in JL Audio’s U.S. factory to deliver years of listening enjoyment.
Finish: Black Ash
Grille Finish: Black Fabric
Enclosure Construction: MDF
| Enclosure Type |
Sealed |
| Enclosure Finish |
Black Gloss |
| Frequency Response (Anechoic) |
31 - 112 Hz (±1.5dB)
-3 dB at 29 Hz / 119 Hz
-10 dB at 21 Hz / 143 Hz |
| Effective Piston Area (Sd) |
32.18 sq in / 0.0208 sq m |
| Effective Displacement |
80 cu in / 1.3 L |
| Amplifier Power |
500 W RMS short-term |
| Power Mode |
Automatic (Signal-Sensing) |
| Light Modes |
| Unbalanced Inputs |
Stereo or Mono (two RCA jacks) |
| Balanced Inputs |
N/A |
| Speaker/High-Level Inputs |
Stereo or Mono (removeable plug) |
| Input Grounding |
Isolated or Grounded |
| Input Modes |
N/A |
| Level Control |
Variable, from full mute to +15dB over reference gain |
| Filter Mode(s) |
Low-Pass |
| Filter Slope(s) |
24 dB/octave |
| Filter Frequency Range |
25 Hz - 130 Hz |
| Filter Defeat Function |
Yes |
| Polarity |
0 or 180 degrees |
| Phase |
Variable, 0- 280 degrees, referenced to 80 Hz |
| Extreme Low Frequency (E.L.F.) Trim |
N/A |
| Line Outputs |
N/A |
| Output to Slave |
N/A |
| Calibration Mode |
N/A |
