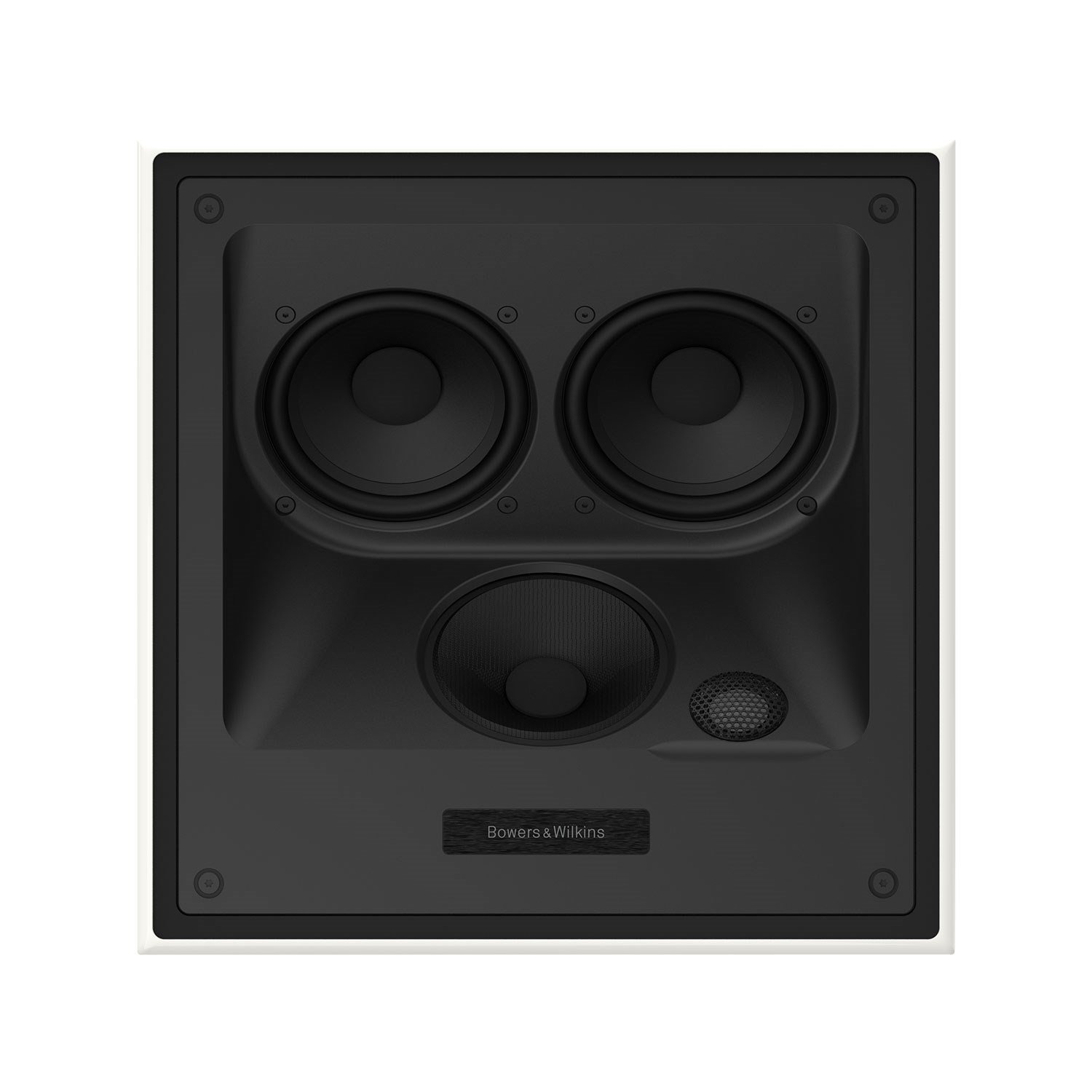

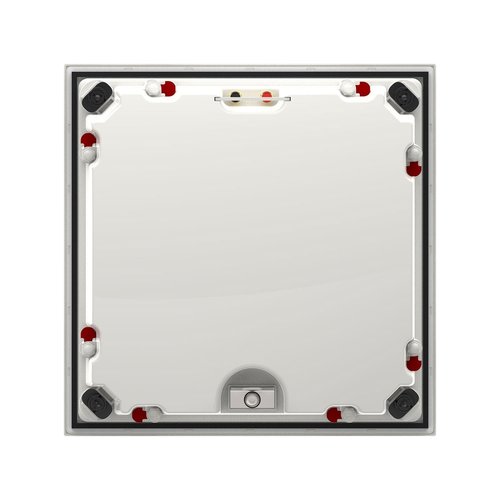

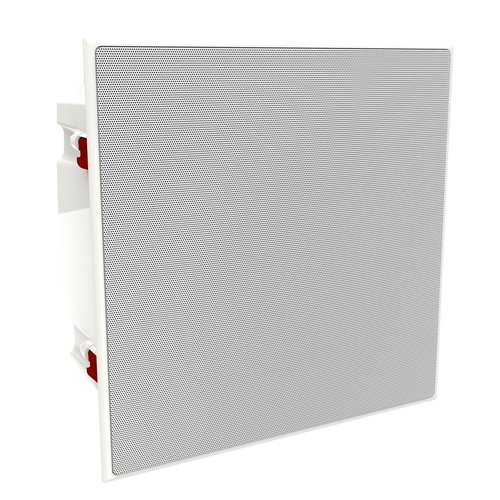

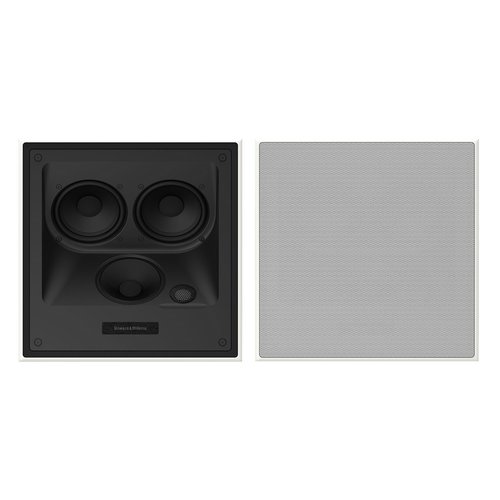

The CCM7.3 S2 is a high-performance in-ceiling speaker for outstanding performance in both theatre and stereo applications. Its sophisticated drive unit configuration features a 25mm(1in) Carbon Dome tweeter, a 100mm (4in) FSTTM Continuum cone mid-range and 2 x 130mm (5in) Aerofoil Profile bass drivers. Its critically formed baffle is constructed from glass reinforced ABS while its integrated backbox ensures easy retrofittable installation, cuts down sound transfer between spaces and optimises sound quality.
CCM7.3 S2
|
| Description |
3-way in-ceiling system |
| Drive units |
1x Ø25mm (1in) Carbon Dome high-frequency
1x Ø100mm (4in) Continuum cone FST mid-range
2x Ø130mm (5in) Aerofoil profile bass |
| Frequency range (-6dB) |
52Hz – 33kHz |
| Frequency response (-3dB) |
55Hz - 28kHz ±3dB |
| Recommended Amplifier Power |
25W - 200W into 8Ω on unclipped programme |
| Sensitivity SPL (2.83V, 1m) |
90 dB |
| Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m)
<1% 90Hz - 33kHz
<0.5% 120Hz - 33kHz |
| Nominal Impedance (min) |
8Ω (3.1Ω) |
| Frame height |
355mm (14in) |
| Frame width |
355mm (14in) |
| Depth |
194.5mm (7.66in) |
| Cut-out height |
332mm (13.1in) |
| Cut-out weight |
332mm (13.1in) |
| Cut-out height w/PMK |
335mm (13.2in) |
| Cut-out weight w/PMK |
335mm (13.2in) |
| Protrusion |
8mm (0.3in) |
| PMK |
C7 |
| Net weight |
9kg (19.84lb) Inc accessories |
