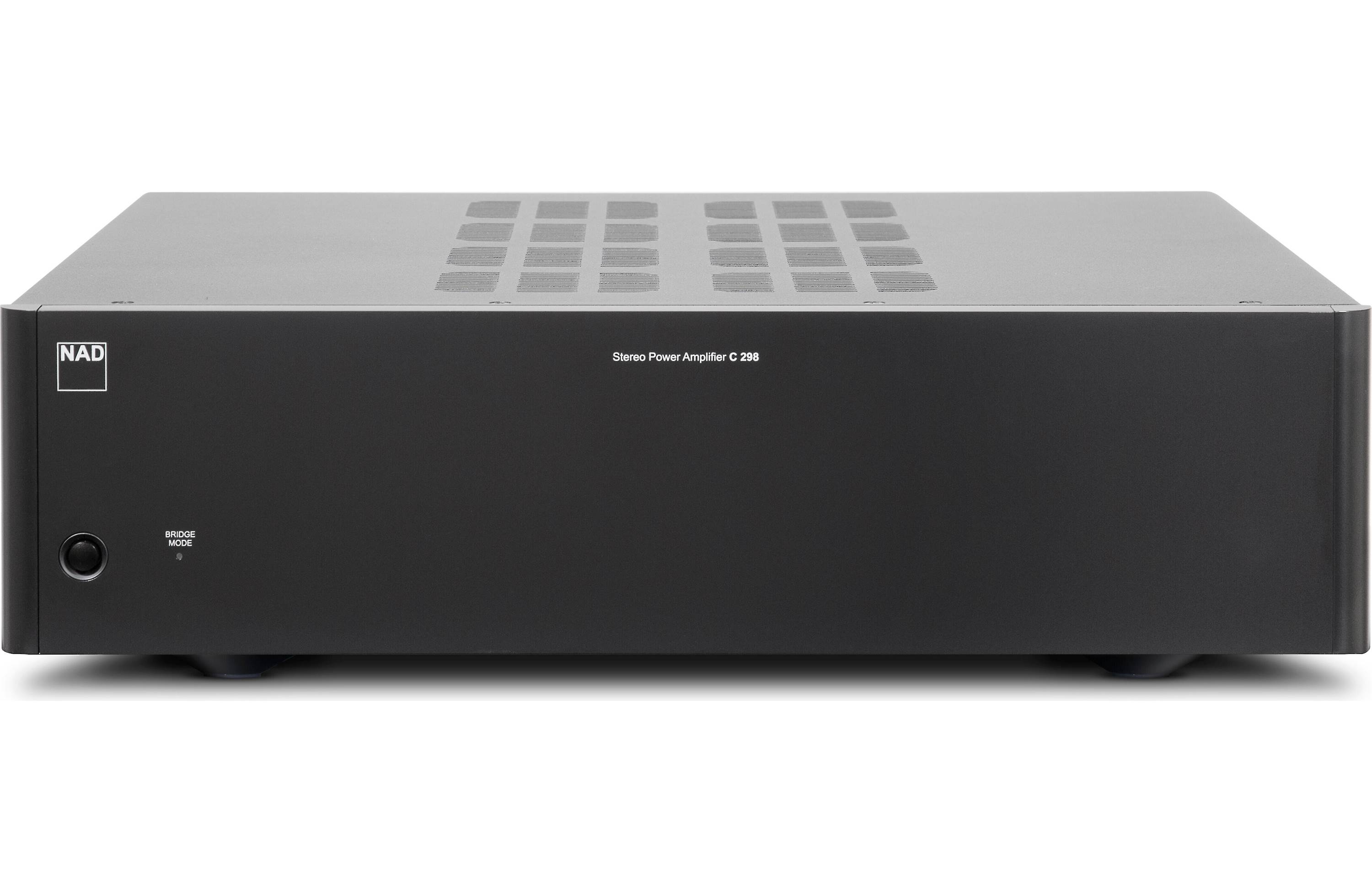

NAD C298 Power Amplifier

The NAD C298 delivers an impressive 185 watts per channel, and it's 4-ohm stable so it can drive a wide array of demanding speakers. In bridged mode, this powerhouse offers 620 watts into a single channel. You can connect your source via unbalanced RCA or balanced XLR inputs.

Innovative amplifier technology

But with NAD, you're getting more than high wattage numbers. This amp offers pristine Class D amplification thanks to HybridDigital Purifi Eigentakt™ technology. It helps the amp maintain even frequency response into lower impedance loads, and minimizes the occurrence of digital clipping. Of course, it also offers robust power output and accurate sound with minimal distortion, for a listening experience that NAD calls "analog-like."

Product highlights:

185 watts per channel into 8 ohms (20-20,000 Hz) at 0.005% THD with 2 channels driven

340 watts x 2 into 4 ohms

620 watts x 1 into 8 ohms (bridged mode)

4-ohm stable for use with a wide range of speakers

Class D amplifier design with HybridDigital Purifi Eigentakt™ technology

signal-to-noise ratio: 120 dB

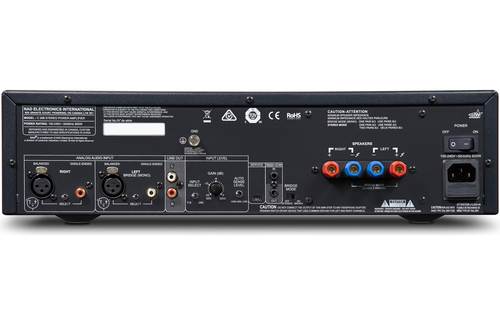

stereo balanced XLR and unbalanced RCA inputs

stereo RCA line output for connecting a separate amplifier or powered subwoofer

binding post speaker connectors

input select switch (fixed/variable)

rotary input gain knob on rear panel

three-position auto sense level switch

12-volt trigger input/output

detachable power cord

Redefining the State of the Art with Purifi Technology

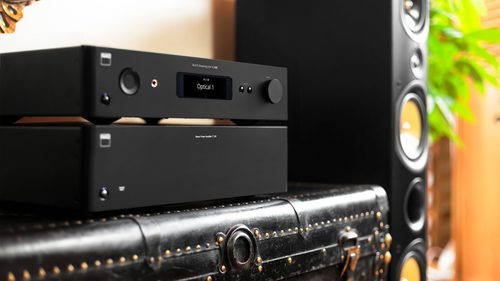

NAD has introduced some of the most innovative amplifier technology in its nearly 50 year history, starting with the 3020 on through such cutting edge models as the 2200, the 208, and the M2. Now we are making the amazing new Eigentakt™ (self-clocking) technology, recently introduced to the world in the EISA Award winning Masters M33, available to a wider audience with the very affordable C 298. We are thrilled to provide this unprecedented level of performance. In short, a perfect companion for the C 658 BluOS Streaming DAC pre-amp.

Powerful. Efficient. Eigentakt™

Amazing Flexibility

The C 298 may be a basic Power Amp, but we have carefully thought through all the use cases typically encountered to create a rich feature content. Selectable balanced inputs make the C 298 a natural for studio use or connection to High End Preamps and Processors. These inputs include a trim control useful for matching to other components. A line out allows further addition of power on the same channel for additional speakers or subwoofers. Auto-sense with selectable threshold is perfect for automating complex systems or hiding the amp out of sight in a cabinet. We even include a Ground Lug that can be very useful for eliminating ground loops and noise in complex multi-unit systems. Added to all this connectivity is a Bridge Switch that turns the C 298 into an amazingly powerful Monobloc Amplifier. Start with one and add a second C 298 later when you upgrade your speakers.

Getting the Basics Right

It is surprising how many seemingly advanced products in the market today often miss many of the most basic requirements for satisfying performance. Low noise circuits, accurate channel balance, proper input and output impedance characteristics, high overload margins and stability with difficult speaker loads. NAD starts by getting these things precisely right and advances from there. Our line inputs, both Balanced and Single-ended, can accommodate all kinds of analog source components by offering ideal input impedance characteristics with linear ultra-low-noise buffer amplifiers to prevent any sonic degradation caused by inappropriate loading of the source device. These are all details you can hear.

Sophisticated Power

NAD has moved away from the old fashioned and very power hungry linear power supplies and Class AB output stages that waste nearly half of the energy consumed producing heat rather than sound. Instead we have developed even better performing circuits based on switch mode power supplies and Class D output stages. Once thought to be inferior to traditional topologies, NAD’s advanced work in this area has created some of the best performing amplifiers regardless of basic design principle. These new designs are very linear over a wide bandwidth and provide consistent performance into all speaker loads, providing a dramatic advance over previous models.

The generously dimensioned power supply easily allows for 185 watts continuous and over 570 watts instantaneous power for short term musical transients. Innovative Asymmetrical Power-Drive fully utilizes every last watt available with its vast reserves of dynamic power available to accurately reproduce musical transients without distortion or compression. It can operate with any AC mains voltage from 100v to 240v and provides pure DC power to all the various stages of the C 298. This highly efficient supply also provides near perfect regulation of voltage across a wide range of conditions and provides a solid noise-free foundation for the amplifying stages.

Purifi ‘Eigentakt’ Amplifier Technology

Purifi is a Danish technology company that has brought together several of the industry’s leading engineers to apply advanced mathematical modelling to solve the last remaining limitations of audio amplifiers. While there are many good sounding amplifiers on the market today, Purifi has taken a fresh look at every aspect of amplifier performance and found many seemingly small non-linearities that can make a dramatic difference in the overall sound. This return to first principles has resulted in a stunningly simple approach to some remarkably complex problems. With features and technology unmatched by other amplifiers in its class, the C 298 amplifier is an easy upgrade for any system and a surprising partner for the most sophisticated and advanced loudspeakers on the market.

Features

185W x 2 Rated Output Power into 8 Ohms

340W x 2 Rated Output Power into 4 Ohms

Stereo Dynamic Power 260/490/570W @ 8/4/2 Ohms

620W x 1 Rated Output into 8 Ohms Bridge Mode

Mono Dynamic Power 1000/1100W @ 8/4 Ohms

Purifi Eigentakt™ Amplifier Technology

Balanced Line Inputs

Single-Ended Line Inputs

Input Level Control

Line Output for Daisy Chaining

12V Trigger In/Out

Auto Turn-on with Selectable Threshold

IR In/Out

Ground Lug

Detachable AC Power Cord
