PRODUCT SPECIFICATIONS
HDR support HDR10, HLG
Color Light Output 2,800 Lumen- 1,900 Lumen (economy) In accordance with ISO 21118:2020
White Light Output 2,800 Lumen - 1,900 Lumen (economy) In accordance with ISO 21118:2020
Resolution 4K PRO-UHD
Contrast Ratio 35,000 : 1
Lamp UHE, 200 W, 4,500 h durability, 7,500 h durability (economy mode)
Keystone Correction Auto vertical: ± 30 °, Manual horizontal ± 30 °
Colour Reproduction Upto 1.07 billion colours
TECHNOLOGY
Projection System
LCD Panel
3LCD Technology, RGB liquid crystal shutter
1.54 cm (0.61") with C2 Fine
OPTICAL
Throw Ratio 1.32 - 2.15:1
Zoom
Lens Shift
Screen Size
Manual, Factor: 1 - 1.62
Manual - Vertical ± 60 %
101.6 cm (40") - 1,270 cm (500")
Projection Distance Wide/Tele 2.34 m - 3.81 m (203.2 cm (80"))
Projection Lens Focal Length 18.2 mm - 29.2 mm
Projection Lens Focus Manual
CONNECTIVITY

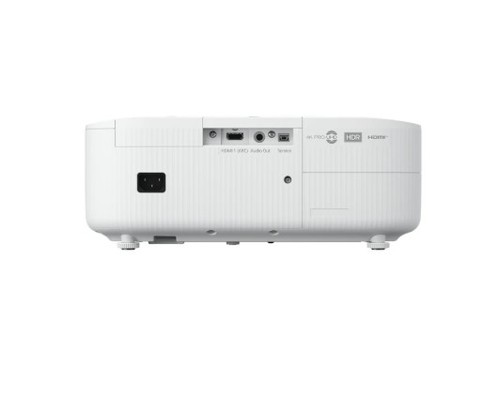

Interfaces USB 2.0 Type B (Service Only), Wireless LAN IEEE 802.11a/b/g/n/ac, Audio Out, HDMI
(HDCP 2.3)
ADVANCED FEATURES
2D Colour Modes Dynamic, Natural, Cinema, Vivid
Other features Android TV, Automatic keystone correction, Built-in speaker, Game mode, Horizontal and
vertical keystone correction, Long lamp life, Quick Corner
GENERAL
Power consumption 301 Watt, 231 Watt (economy), 0.4 Watt (standby)
Heat Dissipation 1,023.4 BTU/hour (max)
OTHER
Warranty 2 Years onsite warranty on Main Unit
1 year or 1000 hours onsite warranty on lamp (whichever is earlier)
