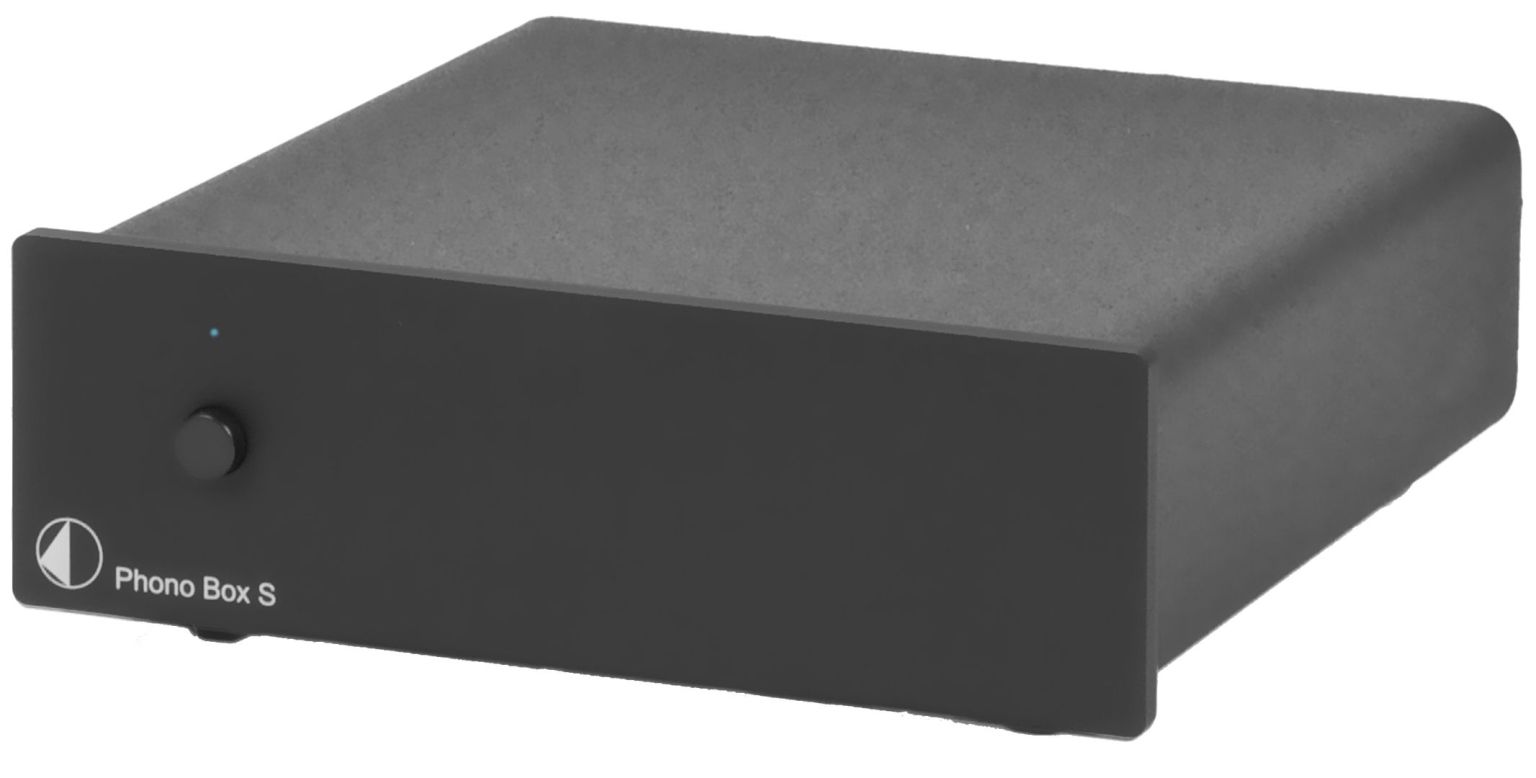

Pro-Ject Phono Box S

DESCRIPTION

Phono Box S was one of our favourite products, it offered unrivalled sonics and versitality at a very affordable price. When we started creating Phono Box S2, its successor, it had to have exactly that but improve on sound even further. Phono Box S2 fea-tures incredible micro-details, dynamics and precision with a soundstage usually found in much more expensive products. The new S2 style housing is made of an aluminium/metal sandwich construction and not only offers highest aesthetics but also out-standingly protects it from unwanted electromagnetic interferences and vibrations. This guarantees for an undisturbed listening experience without worries. The switches on the bottom of the unit allow fine tuning the sound to your preferences and adjusting Phono Box S2 to any available cartridge! Phono Box S was considered the best option of all entry-level phono stages by many acclaimed hifi magazines, Phono Box S2 is sure to follow its predecessor‘s footsteps and will set new standards at this price point!

Features

 Audiophile performance

Dual mono configuration

Audiophile-grade amplification modules

Audiophile-grade polypropylene WIMA capacitors

Precise RIAA equalisation

Switchable Subsonic filter –12dB @ 20Hz

Switchable input impedance/capacitance

4 adjustable gain levels

Outstanding sound quality

Available in silver or black

Specs

 Input impedance: 10ohms, 100ohms, 1kohm A

Input capacitance/impedance: 100pF, 200pF, 320pF and 420pF */47kohms B

Input gain: 40 and 43dB B / 60 and 63dB A

Noise floor MM: 94dB (A weighted) at 40dB and 43dB input gain

Noise floor MC: 75dB (A weighted) at 60dB and 63dB input gain

THD MM: <0,01% at 40dB and 43dB input gain

THD MC: <0,05% at 60dB and 63dB input gain

RIAA-equalisation curve accuracy: 20Hz – 20kHz / max. 0,4dB

Subsonic filter: at 20Hz with 12dB/octave

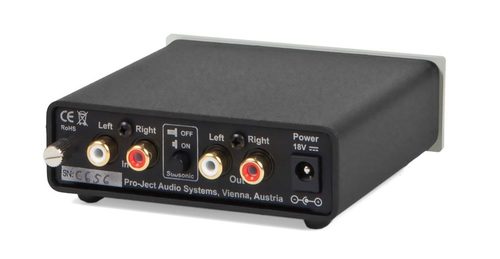

Input: 1 pair RCA/phono sockets

Line-level output: 1 pair RCA/phono sockets

Outboard power supply: 18V/500mA DC, suitable for your country’s mains supply

Power consumption: 85mA DC, <1W in standby

A: typical for low output MC cartridges, B: typical for MM cartridges or high output MC
*Input capacitance is irrelevant for low output MC cartridges.
