McIntosh XR100

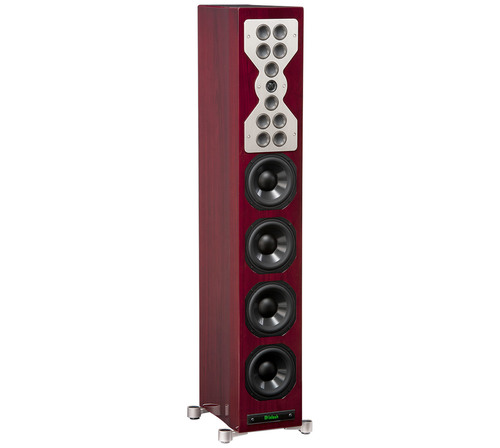

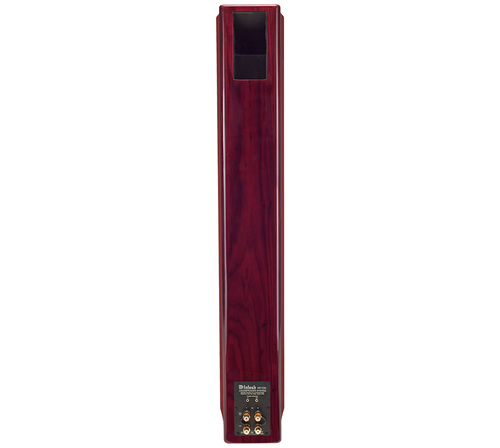

The XR100 Floor Standing Loudspeaker is sleek and contemporary in appearance while producing full range audio reproduction typical of much larger cabinet designs. Fine gloss wood finishes are offered in Black and Red Walnut (shown). The magnetically attached grille is acoustically transparent and covered with neutral black cloth. Our patented Solid Cinch™ speaker binding posts easily but securely attach the speaker cables to prevent them from coming loose and possibly causing a short; the binding posts are gold-plated to prevent corrosion and ensure a quality signal is delivered to your speakers.

Unique front panel McIntosh logo may be illuminated when configured with a McIntosh system. Amplifiers from 75 to 600 Watts are appropriate power for XR100 speakers. Spikes and furniture glide feet are included. Contact your local dealer to learn more.

ELECTRONIC SPECIFICATIONS

• Impedance Nominal 8 Ohms
• Power Rating 75 to 600 Watts
• Frequency Response 30Hz to 45kHz
• Sound Pressure Level, 2.8V/1m 87dB
• Crossover 300Hz, 2kHz, 8kHz

DRIVER SPECIFICATIONS

• Number of Woofers 4
• Woofer Size 6"
• Woofer Type Cast Frame, LD/HP^®, Poly Cone

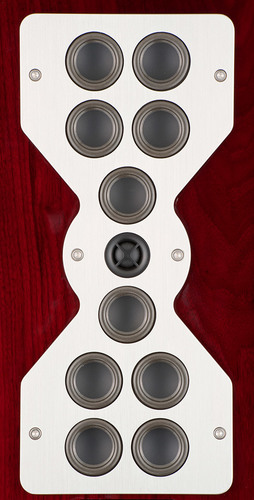

• Number of Midranges 10
• Midrange Size 2"
• Midrange Type 8 Inverted Titanium Dome Midranges covering 300Hz to 2kHz, and 2 Inverted Titanium Dome Midrange-Tweeters covering 2kHz to 8kHz
• Number of Tweeters 1
• Tweeter Size 3/4"
• Tweeter Type Titanium Dome

GENERAL SPECIFICATIONS

• System Type Ported 4-Way Floor Standing
• Grille Black knit cloth, magnetically attached
• Available Finishes Red Walnut, Black, Pear Maple

WEIGHTS & DIMENSIONS

• Dimensions (W x H x D) 8" (20.3cm) x 51" (129.5cm) x 18-1/2" (46.9cm) (including cables and connectors)
• Weight 68.5 lbs (31.1 kg)
• Shipping Weight 83 lbs (37.6 kg)

• PRODUCT LITERATURE	USER DOCUMENTS
  XR100 Loudspeaker Brochure (1.98 MB)	XR100 Loudspeaker Owner's Manual (7.43 MB) Important Additional Operation Information Guide - Preventing Hearing Damage (4.58 MB)
