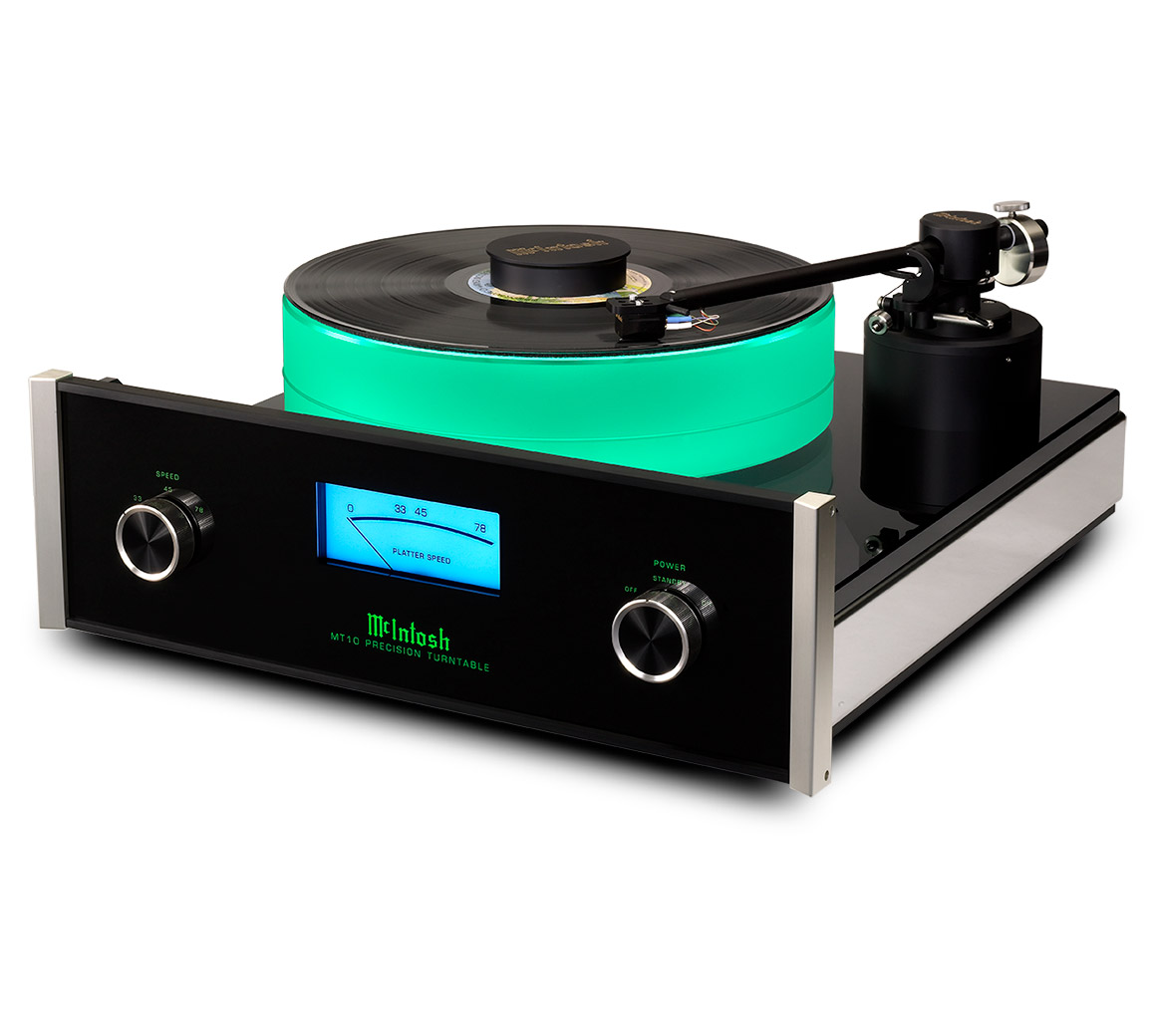

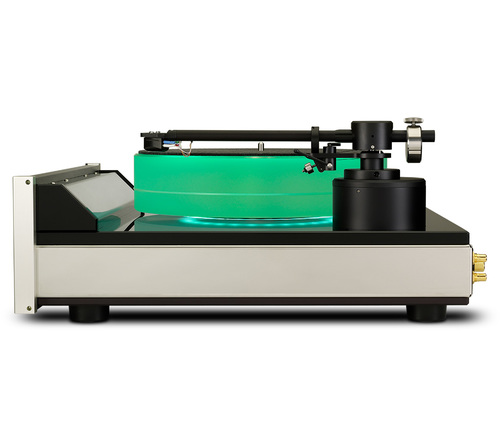

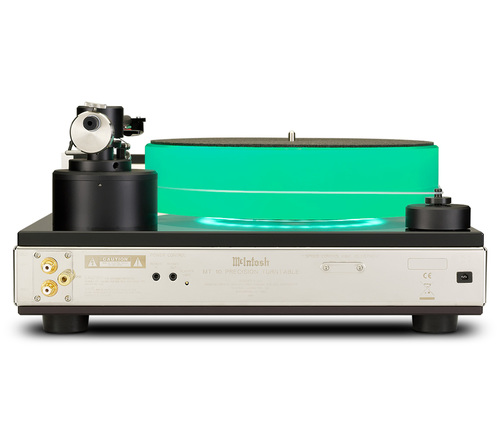

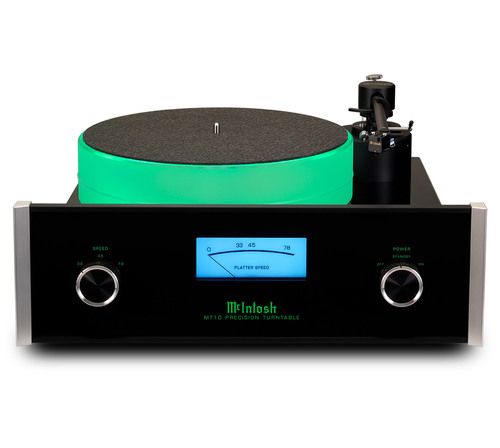

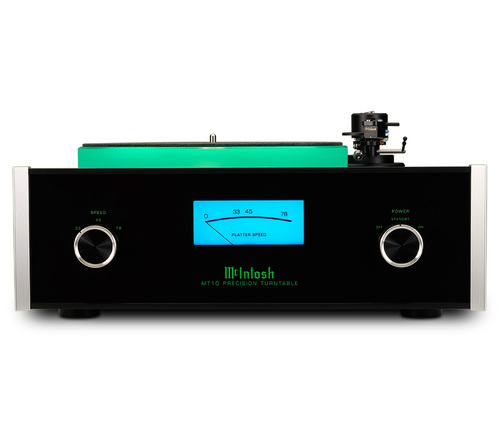

McIntosh MT10

With tracking force, anti-skate and cartridge position preset at the factory, the McIntosh MT10 Precision Turntable delivers high performance LP playback with minimal set up. A custom tonearm features a rigid, dural-aluminum arm-tube gimbaled in two sapphire (horizontal) and two ceramic (vertical) bearings for the least possible friction. A .5mV moving coil cartridge is included, and features an ebony body with an elliptical stylus. Enjoy a new level of music with the MT10 turntable. Contact your local dealer to learn more.

CARTRIDGE SPECIFICATIONS

• Cartridge Type Moving Coil, Low Output
• Output Level 0.5 mV at 5 cm/s
• Load Impedance 400 to 500 Ohms recommended
• Frequency Response 20Hz to 50kHz
• Channel Separation Greater than 30dB at 1Khz
• Compliance 6 x 10^-6 cm/dyne
• Recommended Tracking Force 2.4 g
• Channel Difference Less than 0.3dB at 1kHz
• Total Mass 11 g
• Stylus Elliptical Diamond
• Cantilever Material Aluminum

TONEARM SPECIFICATIONS

• Bearing Sapphire and Ceramic
• Arm Tube Dural-Aluminum
• Counterweight Eccentric
• Adjustments Vertical Tracking Angle, Antiskate, Azimuth

TURNTABLE SPECIFICATIONS

• Playback Speeds 33-1/3, 45 and 78 rpm
• Motor Type DC Brushless
• Speed Control Electronic w/ braking feature
• Platter Silicon Acrylic
• Platter Bearing Magnetic Suspended Ceramic
• Signal To Noise Ratio 41dB - 44dB
• Wow & Flutter 0.10% - 0.15%

CONNECTIVITY

• Stereo Outputs Unbalanced 1

CONTROL

• Power Control Input 1
• Power Control Output 1
• Platter Light Yes
• Speed Control Fine Adjustment Yes

GENERAL SPECIFICATIONS

• Dust Cover Included No

WEIGHTS & DIMENSIONS

• Dimensions (W x H x D) 17-1/2" (44.45cm) x 8-13/16" (22.38cm) x 21" (53.34cm)
  Note: Tone Arm Height will vary depending on the type of Cartridge installed.
• Weight 42 lbs (19 kg)
• Shipping Weight 63 lbs (28.6 kg)

• PRODUCT LITERATURE	USER DOCUMENTS
  MT10 Precision Turntable Brochure (0.13 MB)	MT10 Precision Turntable Owner's Manual (5.15 MB) Important Additional Operation Information Guide - Lithium Batteries (4.91 MB)
