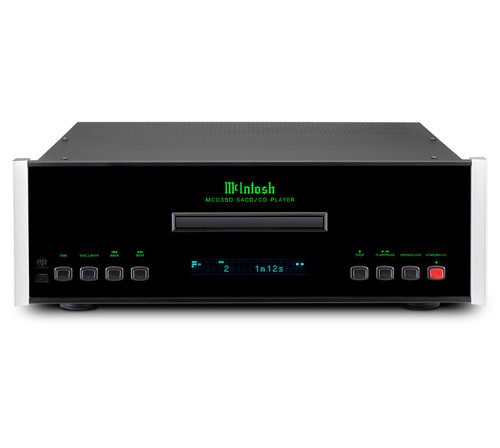

McIntosh MCD350

The MCD350 SACD/CD Player delivers a pure playback experience from your SACDs and CDs.

It features a balanced 2-channel, 32-bit/192kHz Digital-to-Analog Converter (DAC). Fixed analog stereo outputs are available in both balanced and unbalanced offerings; a coax and optical output are also available if you prefer to send the digital audio signal to an external DAC, preamplifier or home theater processor. All analog plus the digital coax outputs are gold plated or superior corrosion resistance.

"Definitive with SACD and impressive with CD too." Awarded 5 out of 5 Globes. - Hi-Fi World

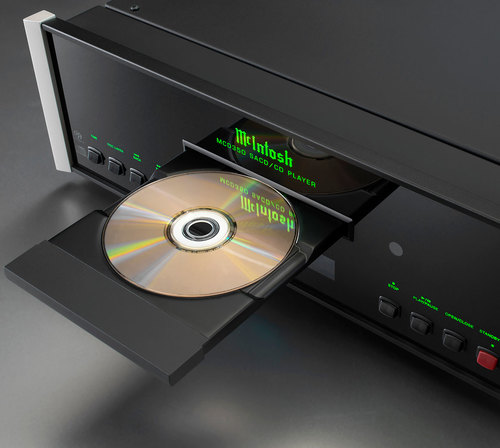

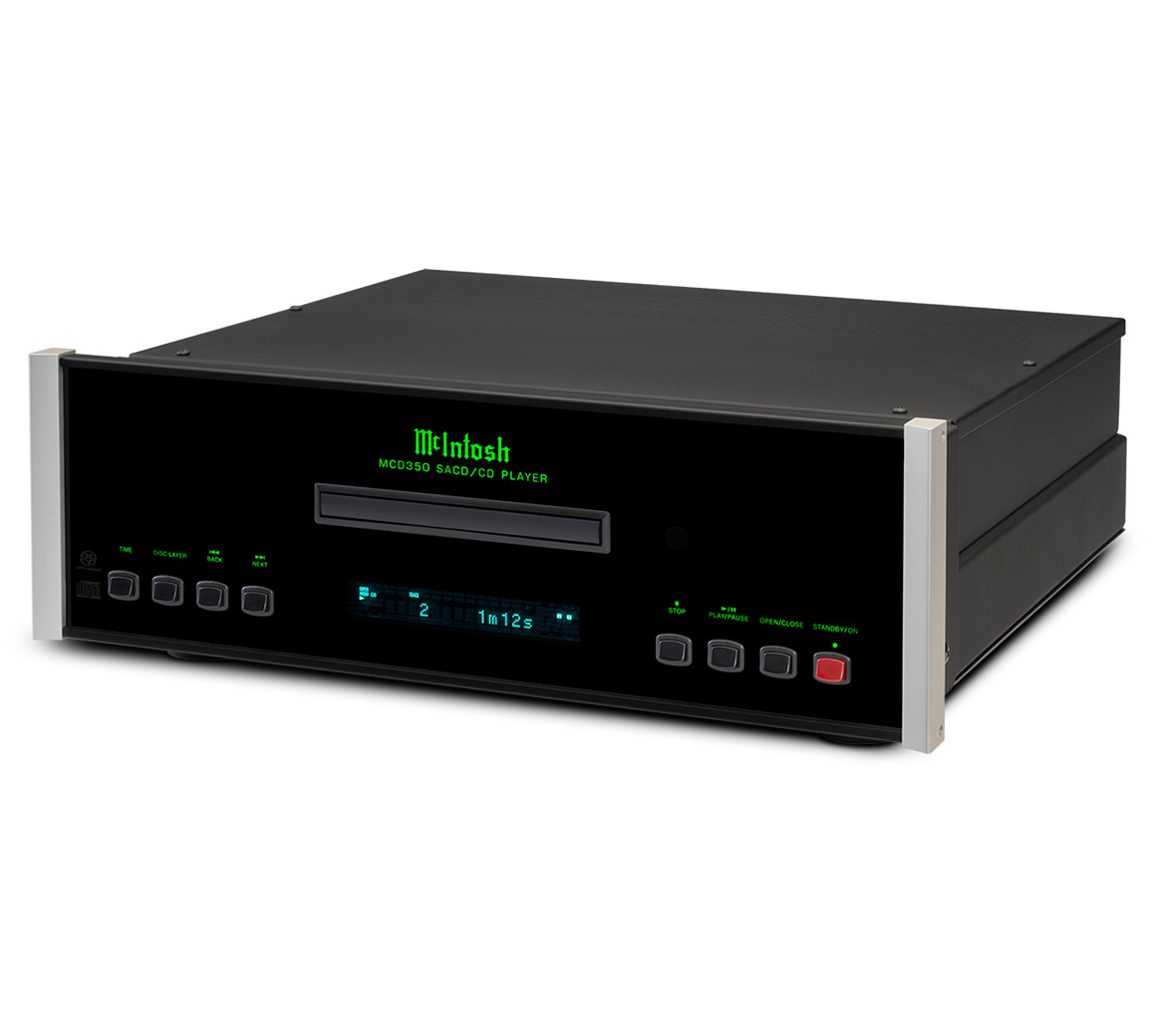

The MCD350 features 2x read speed so that all discs placed in its rigid aluminum die-cast tray are read at higher speeds allowing their data to be stored in a buffer memory for a better error correction and tracking. A twin laser optical pickup uses a single objective lens with two laser units each employing different wavelengths that are optimized for SACD and CD playback. The classic McIntosh black glass front panel with an illuminated logo and aluminum end caps complete the unit. Contact your local dealer to learn more.

AUDIO SPECIFICATIONS

• Number of Channels 2
• Fixed Output Level 2.0Vrms Unbalanced
  4.0Vrms Balanced
• Variable Output Level N/A
• Output Impedance 600 ohms Unbalanced and Balanced
• Frequency Response 4Hz to 40kHz, +0.5, -2dB (SACD)
  4Hz to 20kHz, ±0.5dB (CD)
• Signal To Noise Ratio Better than 108dB (A-weighted)
• Dynamic Range Better than 100dB
• Total Harmonic Distortion 0.003% @ 1000Hz (SACD)
  0.002% @ 1000Hz (CD)
• Channel Separation Better than 98dB (1,000Hz)
• Headphone Output Impedance N/A

DIGITAL AUDIO SPECIFICATIONS

• Digital-to-Analog Converter (DAC) Type 2-channel, 32-bit/192kHz PCM/DSD
• Coaxial Sample Rate N/A
• Optical Sample Rate N/A
• USB Sample Rate N/A
• Digital Coaxial Input N/A
• Digital Optical Input N/A
• Digital Output Sample Rate Up to 24-bit/192kHz
• Digital Optical Output -15dbm to -21dbm
• Digital USB Input Type N/A
• Digital Coaxial Output 0.5V p-p/75 ohms
• Digital XLR Output N/A
• Digital MCT (DIN) Output N/A
• Digital Output Jitter N/A

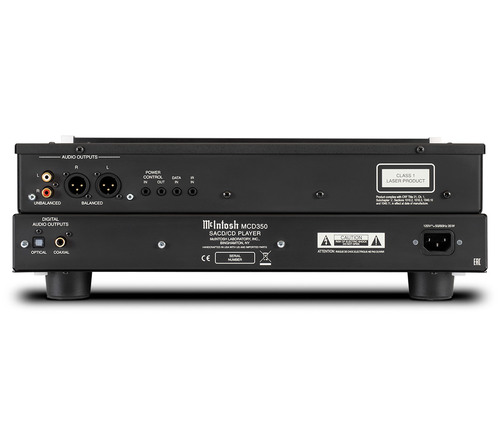

CONNECTIVITY

• Balanced Fixed Output 1
• Unbalanced Fixed Output 1
• Balanced Variable Output 0
• Unbalanced Variable Output 0
• Digital Coaxial Input 0
• Digital Optical Input 0
• Digital USB Input 0
• Digital USB Input Type N/A
• Digital Coaxial Output 1
• Digital Optical Output 1
• Digital XLR Output 0
• Digital MCT (DIN) Output 0
• Headphone Output 0

CONTROL

• Rear Panel IR Sensor Input 1
• Rear Panel Data Input 1
• Power Control Input 1
• Power Control Output 1

GENERAL SPECIFICATIONS

• Disc Formats CD, SACD, MP3 and WMA
• Disc Capacity 1
• Laser Type Twin Beam
• Laser Beam Wavelength 650nm (SACD)
  790nm (CD)
• Laser Power CLASS IIa/CLASS I
• Standby Power Requirement <0.5 watt

WEIGHTS & DIMENSIONS

• Dimensions (W x H x D) 17-1/2" (44.45cm) x 6" (15.24cm) x 19" (48.3cm) Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).
• Weight 28 lbs (12.7 kg)
• Shipping Weight 42.5 lbs (19.2 kg)
