McIntosh MC207

Similar to the MC205, the MC207 7-channel home theater amplifier produces an amazing movie experience in your home by delivering 200 Watts of power to each speaker channel found in 7.1 home theater systems. It can also be used in 5.1 home theaters with the remaining 2 channels used to power a second zone in stereo. Our exclusive Dynamic Power Manager^® (DPM) technology enables the MC207 to deliver its full power into both 4 and 8 Ohm speakers - making it compatible with a wide variety of home theater speakers.

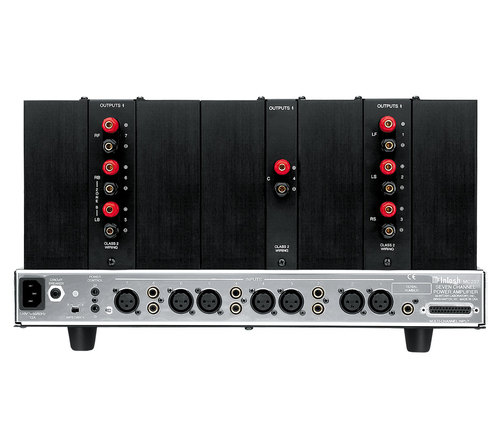

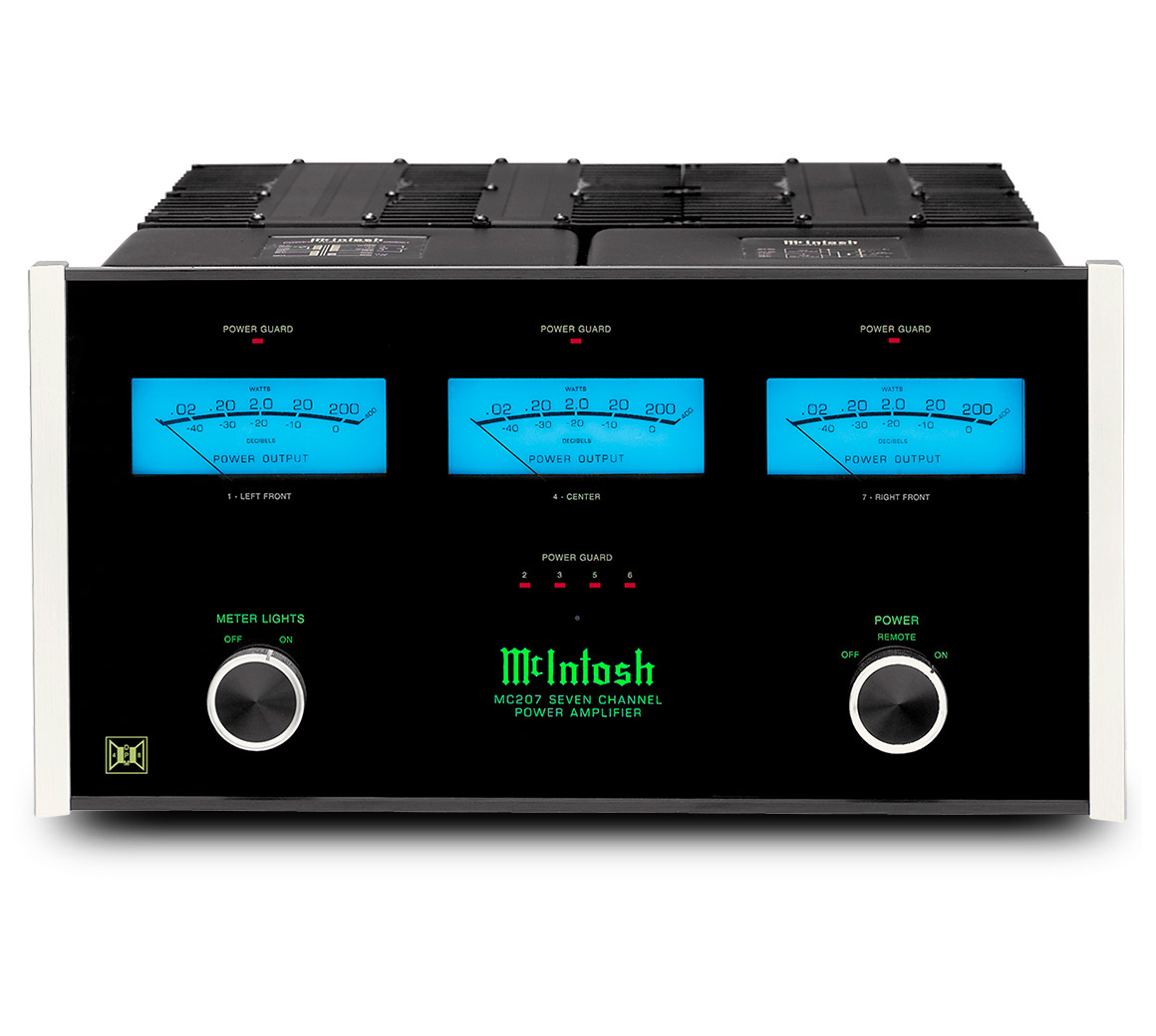

As with the MC205, the MC207 does not need cooling fans so there is no fan noise to interfere with your movie’s soundtrack. It features Power Guard^® to prevent potential speaker damage caused by clipping and over-driving of the amplifier. Short-circuit protection is provided by our Sentry Monitor™ technology that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal. To connect the MC207 to your home theater processor, inputs for both balanced and unbalanced cables are included. Three blue watt meters provide an instant measurement of power output of the front three channels (the meters may be switched off if they conflict with the television or movie screen).

The classic black glass front panel, polished stainless steel chassis, knobs and custom machined brushed aluminum end caps make the MC207 an eye pleasing addition to any room. Contact your local dealer to learn more.

ELECTRONIC SPECIFICATIONS

• Power Output per Channel 200W @ 4 or 8 Ohms
• Number of Channels 7
  (can also be used as a 2-zone amplifier with 5 channels in zone A and 2 channels in zone B)
• Total Harmonic Distortion 0.005%
• S/N below rated output 112dB
• Dynamic Headroom 1.7dB
• Damping Factor >60 @ 4 Ohms
  >140 @ 8 Ohms
• Rated Power Band 20Hz to 20kHz
• Frequency Response +0, -0.25dB from 20Hz to 20,000Hz
  +0, -3dB from 10Hz to 100,000Hz

CONTROL

• Remote Power Control Yes, 7 or 5 + 2 Channel
• Multi-Channel DB25 Cable Yes

GENERAL SPECIFICATIONS

• Circuit Configuration Push-Pull Complementary
• Circuit Design Solid State
• Mono Bridge No
• Mono Parallel No
• Output Type Direct Coupled with Dynamic Power Manager^®
• Meters Yes
• Meter Light Switch Yes
• Balanced Input 7
• Front Panel Glass
• Illumination LED Fiber Optic
• Chassis Style Inverted

CONNECTIVITY

• Speaker Binding Post Type Yes

WEIGHTS & DIMENSIONS

• Dimensions (W x H x D) 17-1/2" (44.5cm) x 9-7/16" (23.9cm) (including feet) x 21" (53.3cm) (including front panel and cables)
• Weight 83 lbs (37.6 kg)
• Shipping Weight 116 lbs (52.6 kg)

• PRODUCT LITERATURE	USER DOCUMENTS
  MC207 Power Amplifier Brochure (2.56 MB)	MC207 Power Amplifier Owner's Manual (5.86 MB) Important Additional Operation Information Guide - Lithium Batteries (4.91 MB)
