Bring all your music to life with the MA8900 Integrated Amplifier. It offers 200 Watts per channel and combines many new features with our legendary amplification prowess and preamplifier capabilities into one all-encompassing unit.
"The McIntosh MA8900 Integrated Amplifier is everything an audiophile might desire, both sonically and in durability... The sound is dynamic without being harsh, controlled without being lifeless, detailed without becoming shrill, and absolutely realistic... [it] can help you make the best of your music, your speakers, and your room." - SECRETS of Home Theater and High Fidelity

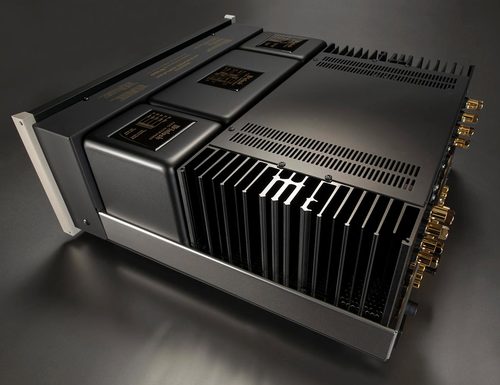

The MA8900 is the first product to feature our new McIntosh Monogrammed Heatsinks™. They are made from high quality materials with excellent thermal conductivity properties and are so efficient at dissipating heat that they warrant bearing the McIntosh “Mc” logo. Besides helping your MA8900 run cool, they’ll also help it look cool thanks to our new finishing process that results in a higher quality appearance. They are connected to advanced high current output transistors that eliminate thermal equilibrium lag time (or warm-up time) so that the first musical note played sounds just as good as songs played later in your listening session.
"The sound character of the McIntosh MA8900 is beautifully balanced and detailed, and I have to admit that I am very much in love." Awarded 5 Stars. - Stereo+

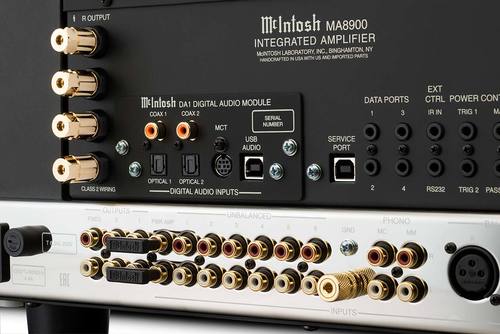

To keep up with the ever-changing world of digital audio, all the digital inputs are housed in our new DA1 Digital Audio Module. The DA1 Digital Audio Module can be replaced by future modules to easily keep your MA8900 current with all the latest digital audio formats and technologies. (NOW AVAILABLE: Optional dealer installed upgrade to the DA2 Digital Audio Module.) The DA1 comes with an upgraded 8-channel, 32-bit Digital-to-Analog Converter (DAC) used in Quad Balanced mode; it has 6 digital inputs consisting of 2 coax, 2 optical, 1 USB and 1 MCT for use with our MCT500 SACD/CD Transport. The coax and optical inputs will decode music up to 24-bit/192kHz for high resolution audio playback; the USB input accepts even higher PCM signals up to 32-bit/384kHz and supports up to DSD256 and DXD 384kHz. Analog stereo inputs include 1 balanced and 6 unbalanced plus 1 each of Moving Coil and Moving Magnet for turntable connectivity. All inputs can be given custom names for user-friendly system control and configuration. Unlike our previous integrated amplifiers, every input now functions independently of each other and all are always available for use regardless of how you connect your sources.
With "a fluid sound" that's "without hardness," the MA8900 can "cope with the most difficult speakers." Unlike many solid state amplifiers, the MA8900 "creates no tiredness" of listening and does so "without sacrificing the speed or sharpness sometimes necessary" for certain types of music while at the same time it can do "justice to the volume of a symphonic orchestra" and exhibit "extreme refinement when the music requires it." Awarded d'Or 2017 Hi-Fi Award - Diapason
Besides new heatsinks and advanced digital audio capabilities, the MA8900 includes many other updates. Our engineers have used new, more powerful control microprocessors to improve overall system operation. They have also incorporated some of the latest audio-grade circuit components to allow the MA8900 to deliver the best sound possible.
"The MA8900 doesn’t sound good - it sounds marvelous, on all types of music. It engenders a sense of pride of ownership, has Cadillac build quality, [and] intelligent user features." - StereoNET
At 200 Watts per channel, the MA8900 has enough power to properly drive virtually all loudspeakers. And the renowned McIntosh Autoformer™ guarantees your speakers will always receive the full 200 Watts regardless if they have 2, 4 or 8 Ohm impedance. Other McIntosh features included in the MA8900 are:
Power Guard® that monitors and adjusts the sound wave at the speed of light to prevent harsh sounding distortion and clipping that could damage your speakers
Sentry Monitor™ is our fuse-less short-circuit protection circuit that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal
Home Theater PassThru that allows for seamless integration into a home theater system
High Drive headphone amplifier with Headphone Crossfeed Director (HXD®) which can bring an added dimension to headphone listening
A discrete, five-band tone control that permits manual analog adjustment of your favorite recordings
Power Control to send power on/off signals to connected McIntosh components for easy system power up and shutdown
Gold-plated speaker binding posts that prevent corrosion to ensure a quality signal is sent over your speaker cables to your speakers
The MA8900 is one of many McIntosh products to receive Roon Tested designation from Roon Labs. It has been profiled and tested by both Roon and McIntosh for maximum compatibility. Roon will recognize it and send it audio optimized for its capabilities. No fiddling with checkboxes or dropdowns, Roon Tested devices are automatically identified and configured out of the box for a superior customer experience.

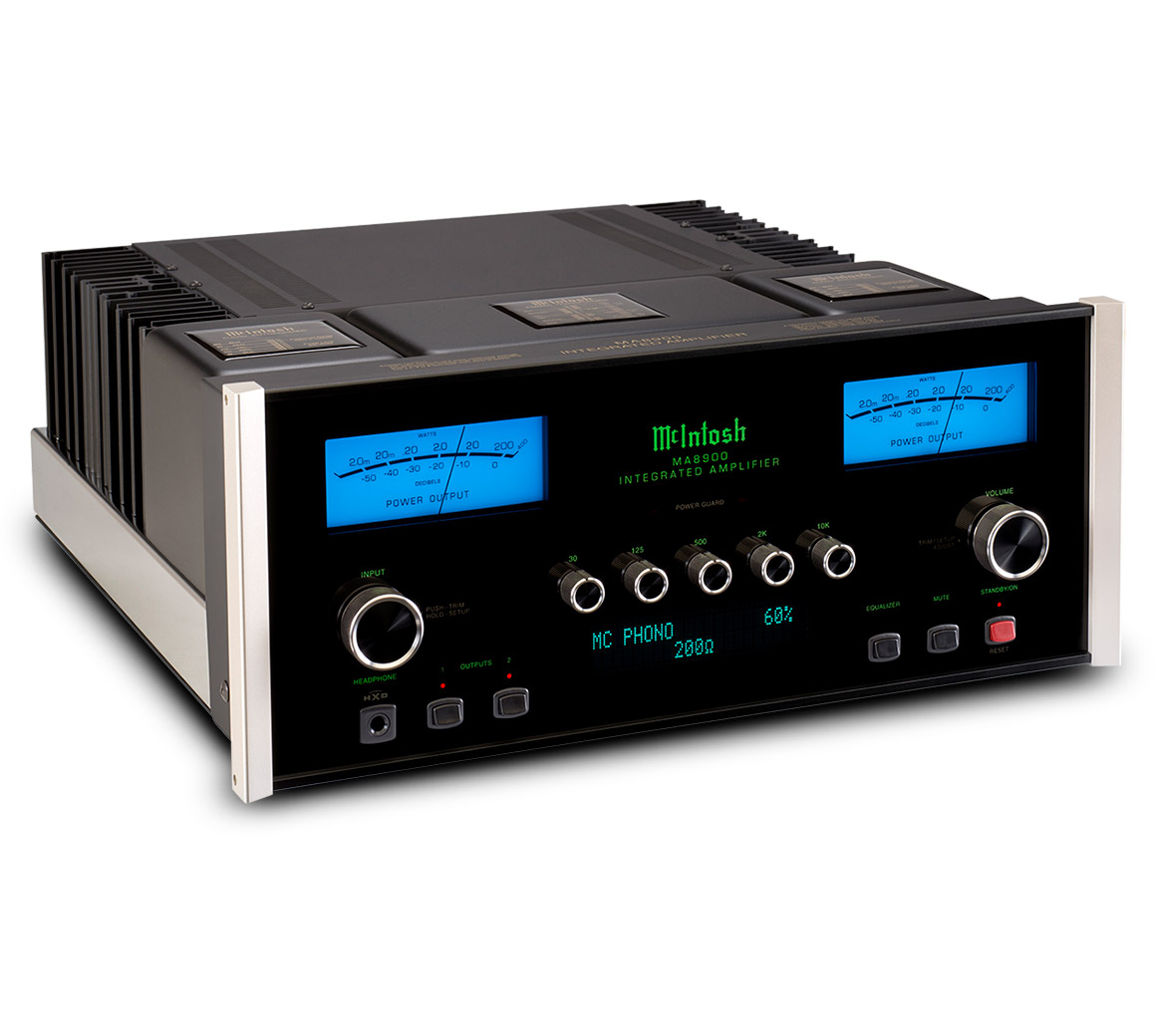

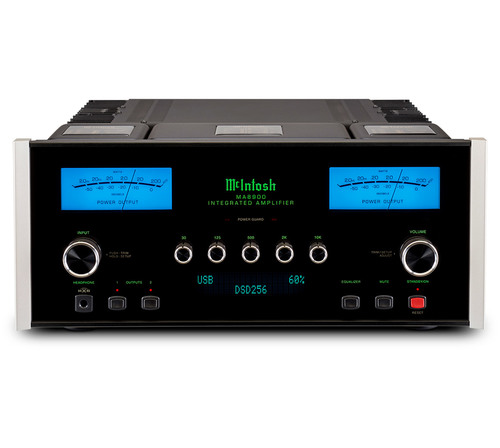

The entire unit is wrapped in the timeless McIntosh aesthetic with blue watt meters, a black glass front panel, control knobs, illuminated logo, aluminum end caps and a beautiful polished stainless steel chassis. Contact your local dealer to learn more.
ELECTRONIC SPECIFICATIONS
Power Output per Channel
200 Watts
Number of Channels
2
Speaker Impedance
2, 4, or 8 Ohms
Rated Power Band
20Hz to 20kHz
Total Harmonic Distortion
0.005%
Dynamic Headroom
2dB
Frequency Response +0,-0.5dB
20Hz to 20kHz
Frequency Response, +0, -3dB
10Hz to 100kHz
Sensitivity Phono (Moving Coil)
0.25mV
Sensitivity Phono (Moving Magnet)
2.5mV
Sensitivity High Level (Balanced / Unbalanced)
0.5V/0.25V
Sensitivity (Power Amp input)
1.4V
Signal To Noise Ratio (Moving Coil)
80dB
Signal To Noise Ratio (Moving Magnet)
82dB
Signal To Noise Ratio (High Level)
95dB
Signal To Noise Ratio (Power Amp input)
113dB
Input Impedance (Balanced / Unbalanced)
20K/20K
Damping Factor
>40
Maximum Output (Balanced / Unbalanced)
8V Unbalanced

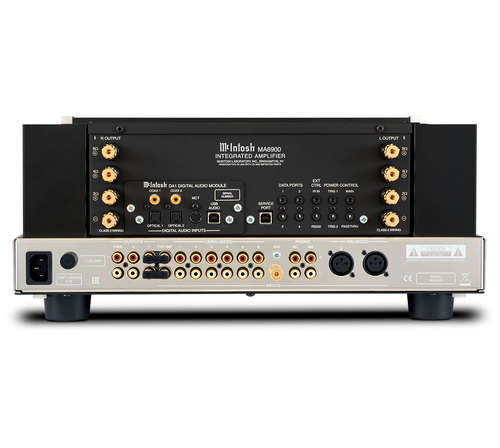

CONNECTIVITY
Balanced Input
1
Unbalanced Input
6
Phono Input Moving Coil
1 (adjustable loading)
Phono Input Moving Magnet
1 (fixed loading)
Upgradeable Digital Audio Module
Yes
Digital Coaxial Input
2
Digital Optical Input
2
Digital MCT (DIN) Input
1
Digital USB Input
1
Balanced Variable Output
0
Unbalanced Fixed Output
1
Unbalanced Variable Output
2
Headphone Output
1/4" High Drive with Headphone Crossfeed Director (HXD®)
Subwoofer Output
0
AM/FM Tuner option
No
Home Theater PassThru
Yes
Unbalanced Analog Connector Type
Standard
Speaker Binding Post Type
Standard
Service Port
1
DIGITAL AUDIO SPECIFICATIONS
Digital-to-Analog Converter (DAC) Type
8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
Digital Coaxial Input Sample Rate
24-bit/44.1kHz to192kHz
Digital Optical Input Sample Rate
24-bit/44.1kHz to192kHz
Digital MCT (DIN) Input Sample Rate
16-bit/44.1kHz (CD)
DSD64 (SACD)
Digital USB Input Sample Rate
32-bit/44.1kHz to 384kHz (PCM)
DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz
CONTROL
Tone Controls
5-Band
Tone Bypass and Input Assign
Yes
RS232 Control Input
Yes
Power Control Output
1 Main, 2 Trigger
Rear Panel Data Port
4
Rear Panel IR Sensor Input
Yes
Input Level Match
Yes
GENERAL SPECIFICATIONS
Vacuum Tube or Solid State
Solid State
Output Type
Autoformer™
Output Meters
Yes
Dual Layer Chassis
Yes
Chassis Finish
Polished stainless steel & black painted steel
McIntosh Monogrammed Heatsinks™
Yes
Power Requirement
120V 50/60Hz, 4.4 amps
Standby Power Requirement
<0.25 Watts
WEIGHTS & DIMENSIONS
Dimensions (W x H x D)
17-1/2" (44.45cm) x 7-5/8" (19.37cm) x 22" (55.88cm)
Weight
75 lbs (34.1 kg)
Shipping Weight
93 lbs (42.3 kg)
