Best Stereo
Power Amplifier
of 2019Prepare yourself for years and years of musical enjoyment with the MC312 Power Amplifier. A 300 Watt per channel stereo amplifier, the MC312 is a great choice to power virtually any home audio system. The full 300 Watts can be delivered to almost any speakers regardless if they have 2, 4 or 8 Ohm impedance thanks to our unique Autoformer™ technology.
Named Best Stereo Power Amplifier of 2019 by Secrets of Home Theater and High Fidelity. "This just may be all the amplifier you will ever need!"
The MC312 has received numerous improvements compared to our previous 300 Watt stereo amplifier. Most notably is that filter capacity has been doubled, which increases dynamic headroom an impressive 27% from 1.8dB to 2.3dB. This increase means the MC312 will be even better suited to handle wide dynamic swings in your music. Distortion prevention and bass performance also benefit from the increased filter capacity.
"A component that makes you want to listen to as much music as possible, such as the MC312, is what it is all about... It is perhaps the finest, most sophisticated amplifier I have heard in its price range in my system." - NOVO Magazine

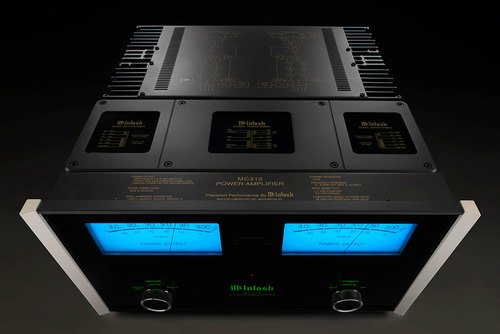

While still looking very much like a McIntosh, the MC312 has received some key design updates. Direct LED backlighting now illuminates the front panel for improved color accuracy. The audio output Autoformers still straddle the power transformer, but are now located in new enclosures that are capped by a single cover containing glass inserts that show the wiring diagram for each transformer. Other updates include the addition of our Monogrammed Heatsinks™ and our eco-friendly power management system. Numerous circuit components and internal wiring have also been upgraded. Balanced and unbalanced outputs have been added to enable bi-amping or tri-amping your speakers; they can also be used to connect to a secondary system if your preamplifier doesn’t have enough connections, or to connect a powered subwoofer.
"When the hairs on your arms rise during a listening session, and you get a huge grin on your face, you know that (a) you're having a tremendous amount of fun, and (b) you're listening to true reference-quality equipment." - Secrets of Home Theater and High Fidelity
The MC312 is packed full of other exclusive McIntosh technologies:
Power Guard® that monitors and adjusts the input signal at the speed of light and makes real time adjustments to prevent harsh sounding and potentially speaker damaging clipping
Sentry Monitor™ - our fuse-less short-circuit protection circuit that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal
Power Control to send power on/off signals to other connected McIntosh components (such as CD Players, turntables, tuners and media streamers) for easy system power up and shutdown
Our patented Solid Cinch™ speaker binding posts that easily but securely attach the speaker cables to prevent them from coming loose and possibly causing a short; the binding posts are also gold-plated to prevent corrosion and ensure a quality signal is sent over your speaker cables

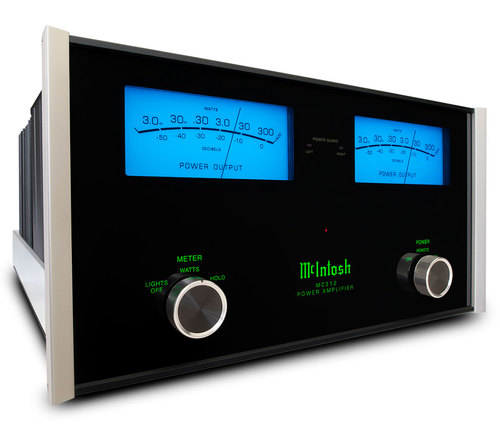

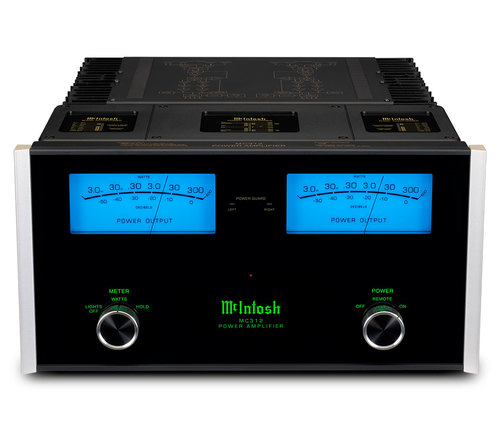

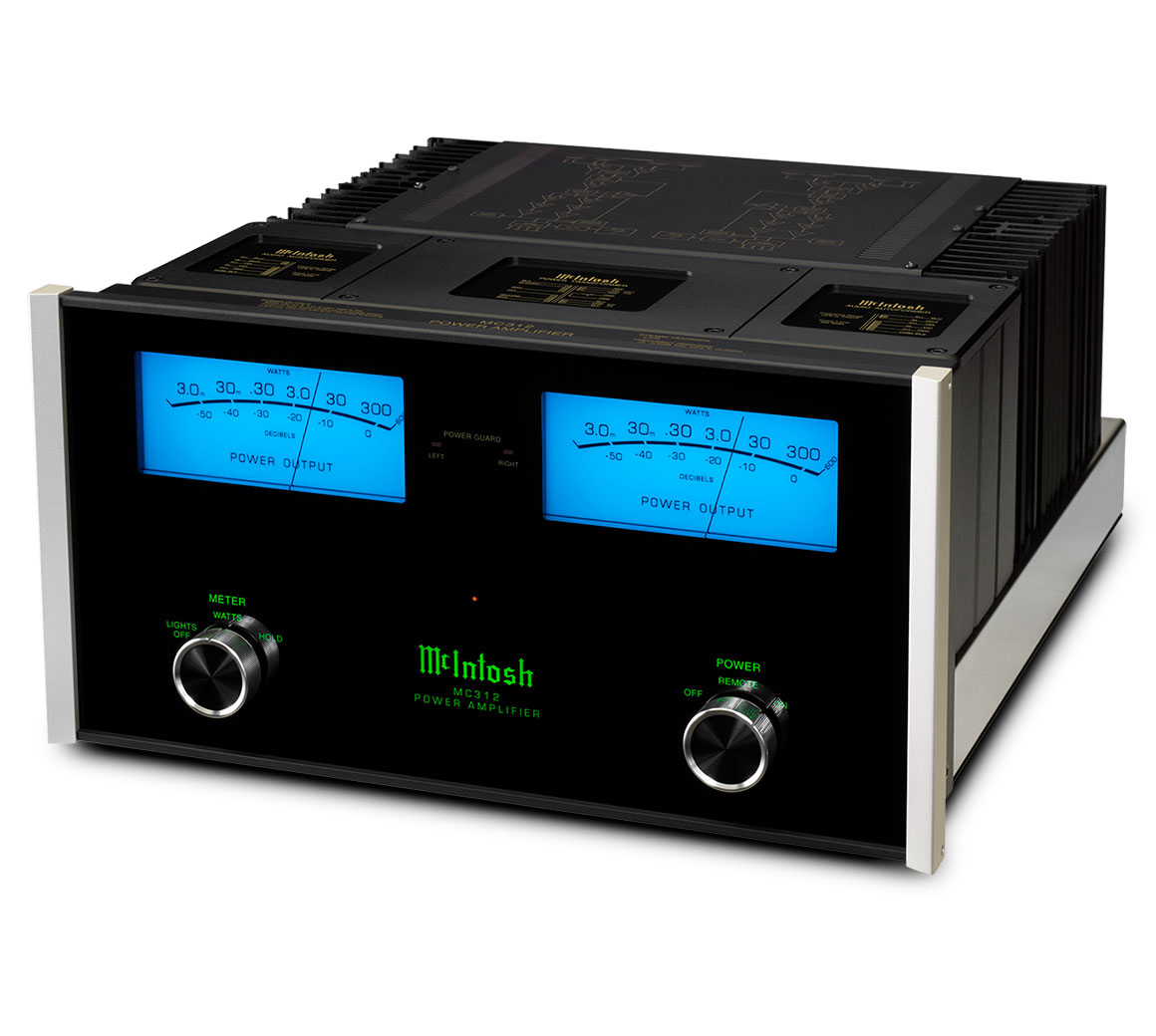

The MC312 sits on a beautiful polished stainless steel chassis and features the timeless McIntosh black glass front panel, illuminated logo, control knobs, aluminum end caps and a pair of fast responding blue Watt meters. Contact your local dealer to learn more.
ELECTRONIC SPECIFICATIONS
Power Output per Channel
300 Watts @ 2, 4 or 8 Ohms
Number of Channels
2
Total Harmonic Distortion
0.005%
S/N below rated output
Balanced: 120dB
Unbalanced: 118dB
Dynamic Headroom
2.3dB
Damping Factor
>40 Wideband
Rated Power Band
20Hz to 20kHz
Frequency Response
+0, -0.25dB from 20Hz to 20,000Hz
+0, -3.0dB from 10Hz to 100,000Hz
CONTROL
Remote Power Control
Yes
Multi-Channel DB25 Cable
N/A
CONNECTIVITY
Speaker Binding Post Type
Patented Solid Cinch™ Speaker Binding Posts
GENERAL SPECIFICATIONS
Circuit Configuration
Push-Pull Complementary
Circuit Design
Solid State
Mono Bridge
No
Mono Parallel
No
Output Type
Autoformer™
Meters
Yes
Meter Light Switch
Yes
Balanced Input
2
Front Panel
Glass
Illumination
Direct LED
Chassis Style
Polished stainless steel & black painted steel
WEIGHTS & DIMENSIONS
Dimensions (W x H x D)
17-1/2" (44.45cm) x 9-7/16" (23.97cm) (including feet) x 22" (55.88cm) (including front panel, handles and cables)
Weight
105 lbs (47.63 kg)
Shipping Weight
138 lbs (62.59 kg)
