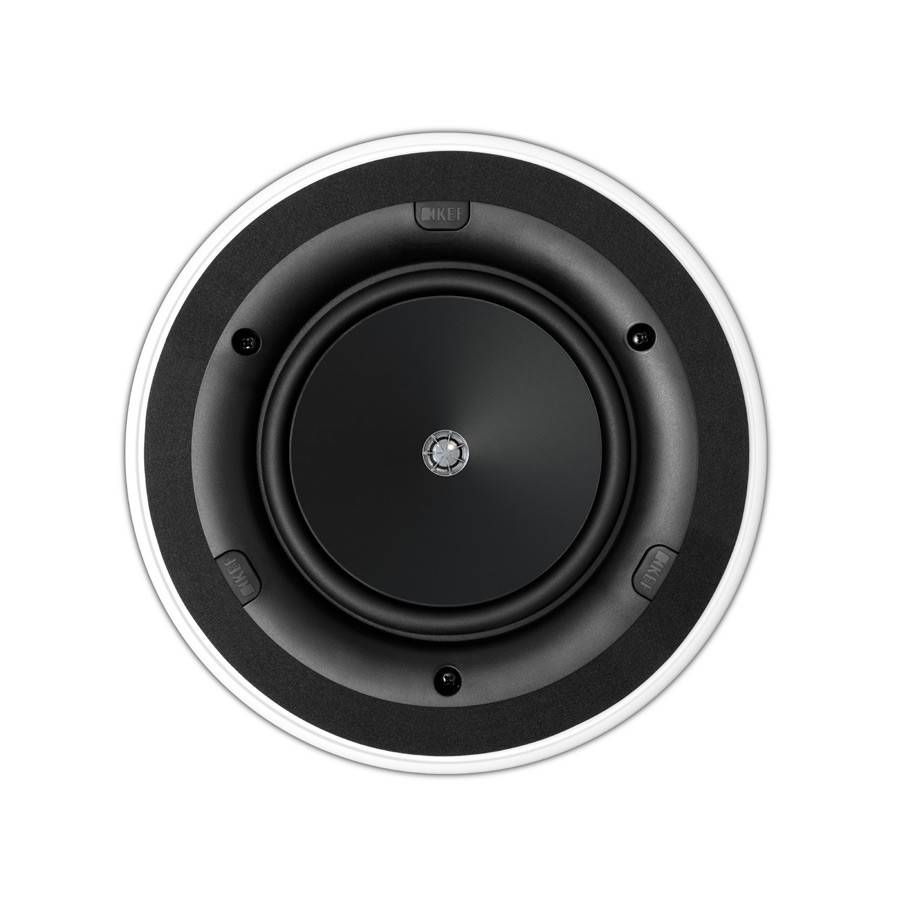

The new KEF Ci160 2CR is a custom-made in-ceiling speaker that can be easily installed into walls. This speaker is part of the immensely popular sound light series, and adds to the family yet another prime alteration, offering an in-ceiling speaker that will deliver renowned sound quality that will impress everybody who hears it.
The elegant architecture of these speakers allows them to become so seamlessly integrated that they are almost invisible. But the technology incorporated into the speaker itself will amaze you with its exceptional performance. The KEF Ci160 2CR In-Ceiling Speaker is flexible enough to blend with halogen light fixtures and will project the feel of flush-mounted down-lighting.

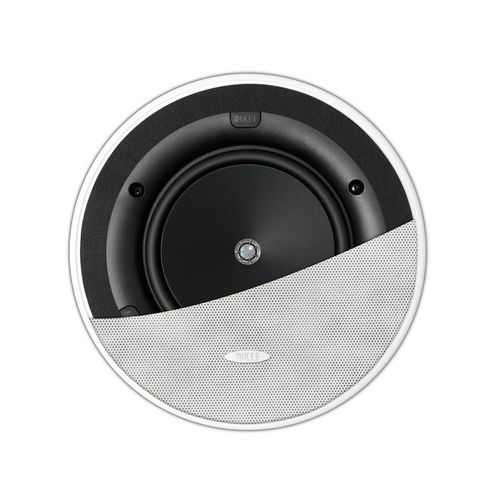

The Ci160 2CR features UTB™ (Ultra-Thin Bezel) which can be painted, allowing the personalization as per the look and feel of the room in which they are installed. The marine-grade construction and removable rear units further improve the design of these impressive in-ceiling speakers.
These in-ceiling speakers are easy and quick to install, fitting into even the narrowest of spaces without compromising the audio experience. The KEF engineered Speaker Placement Tool will assist you with helpful wiring diagrams in order to speed up the installation process and allow you to enjoy your music without having to worry about a long and complicated setup.

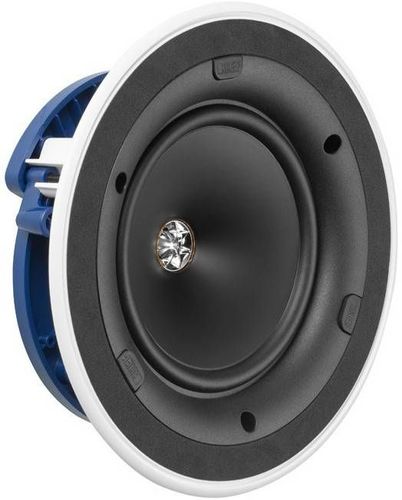

The KEF Ci160 2CR In-Ceiling Speakers include KEF’s intuitive Uni-Q driver and an aluminium dome tweeter with tangerine waveguide. IP64 certification makes the Ci160 2CR In-Ceiling Speakers the most suitable speakers available.
These KEF speakers encompass a 160-millimeter polypropylene cone bass and a 19-mm soft dome tweeter, which works to make the woofer act as a single point source and distributes any undistorted sound. The sound passes through the high pass filters amplifying the bass processed by subwoofers. The Ci160 2CR’s screw down clamping system helps in the easy installation and is easy to accommodate both 70V/100V and stereo music.
The superb KASA500 Software Update Tool available with these speakers is powerful Class-D dual amplifier, optimised to deliver high-class bass with both line and speaker inputs. This in-ceiling speaker is the best module for speech enforcement applications and an ideal design piece to be welcomed into the KEF family of custom installation speakers.
-
Customisable bezel which can be painted to match the room in which the speaker is installed
-
Wiring diagrams provided through KEF’s Speaker Placement Tool
-
KASA500 Software Update Tool included
-
Marine-grade construction
-
Simple installation
-
Ultra-Thin Bezel
NOMINAL IMPEDANCE
8 Ohm
SENSITIVITY
(2.83V/lm) 89dB
FREQUENCY RESPONSE
52Hz-20kHz (+/-6dB) open-backed
CROSSOVER FREQUENCIES
2.5kHz
DRIVE UNITS
LF: 160mm (6.5in.) Uni-Q
HF: 16mm (0.6in.)
RECOMMENDED AMPLIFIER POWER
10-100W
PRODUCT EXTERNAL DIMENSIONS
Diameter: 234.6mm (9.24in.)
Depth: 88.7mm (3.49in.)
CUT-OUT DIMENSIONS
Diameter: 196mm (7.71in.)
MOUNTING DEPTH FROM SURFACE
84.5mm (3.33in.)
OPTIONAL ROUGH IN FRAME
RIF160R
OPTIONAL REAR ENCLOSURE
RNC160R
NET WEIGHT
1.4kg (3.1lbs)
