Max. number of processing (preamp) channels
2.1
Sound Enhancements
Discrete Power Amplifier
Yes
Pure Direct
Yes
Gold Plated RCA Terminals
Yes
Compressed Audio Restorer
Yes
Network
Media Server
Yes
HEOS Wireless Multi-Room Technology
Yes
Alexa / Google Voice Assistant / Apple HomePod
Yes / Yes / Yes
Lossy Formats: MP3 / WMA / AAC
Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV
Yes / Yes / Yes
Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
Yes / Yes / Yes
DSD Audio Streaming
Yes (2.8/5.6MHz)
FLAC HD 192/24
Yes
WAV 192/24
Yes
ALAC 192/24
Yes
Gapless playback
Yes (FLAC, WAV, ALAC ,DSD)
AirPlay Audio Streaming
Yes (AirPlay2)
Internet Radio
Yes (TuneIn)
Spotify Connect
Yes (connect)
Pandora
Yes
SiriusXM
Yes
Other Streaming Services
Amazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
Roon Tested
Yes
HEOS App Control
Yes
Compatible with Remote APP for Smart Phones
Denon AVR Remote
Compatible with Remote APP for Tablets
Android / iOS / Amazon Kindle
Ethernet Ports
Yes
Wi-Fi
Yes
Bluetooth
Yes
HDMI
HDMI Inputs: Back, Front
6 / No
HDCP2.3 support
Yes
HDMI Outputs: Main, Zone
1 / No
HDMI to HDMI Scaling
1080P/4K to 8K
HDMI 2.1: 8K/60 Hz AB / 4K/120 Hz AB
Yes / Yes
8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out
3/1 (up to 40Gbps)
HDMI 2.0: 3D / 4K / CEC / ARC / InstaPrevue
Yes / Yes / Yes / Yes / No
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
Yes / Yes / No / Yes / Yes
ALLM (Auto Low Latency Mode) Pass-Through for Gaming
Yes
Variable Refresh Rate / Quick Flame Transport / Quick Media Switching
Yes / Yes / No
3D Signal Pass-Through
Yes
8K Signal Pass-Through, Scaling, GUI Overlay
Yes / Yes / Yes
4K Signal Pass-Through / Scaling / GUI Overlay
Yes / Yes / Yes
HDMI Pass-Though in Standby Mode
Yes
CEC
Yes
Audio Return Channel
ARC, eARC
Auto LipSync
Yes
Multi-room / CI
Multi-Room Zones
2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog
Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Pre-Out
No / Yes
IP Control / RS232 Control / Web Control / App Control
Yes / No /Yes / Yes
Remote In/Out
Yes / No
HDMI Diagnostics
Yes
Others
Front Display
1 Line FLD
Graphic User Interface - GUI
HD GUI
GUI Languages
3
Setup Assistent
Yes
Quick Select Plus, Quick Select
Yes / No
Firmware Update by Network / USB
Yes / Yes
ECO Mode
Yes
Auto Power Off
Yes
Sleep Timer
Yes

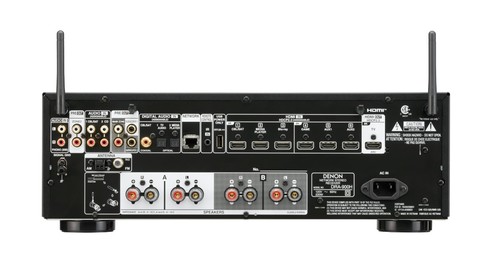

Inputs Outputs
VIDEO
HDMI In/Out
6 / 1
AUDIO
Analog In, Out
2 / No
Phono (MM) In
Yes
Digital in: Optical/Coaxial
2 / 1
Multi-Room Out: Analog/Digital
1 / No
Multichannel Pre-out
Yes (2.2)
Subwoofer Out
2
OTHER
Speaker Terminal: Gold-Plated Screw / Regular Screw
Yes / No
Number of Speaker Terminals
4
Speaker A / B
Yes
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB
No / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhone
Yes / No / No
USB Power Supply on Rear Panel
Yes
AM/FM Tuner
Yes
Specifications
Number of Power Amps
2
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
100 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)
120 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)
175 W
General
System Remote Control
RC-1259
Power Consumption in W
220W
Power Consumption No-Sound (ECO On / Off) in W
23W/32W
Standby Consumption in W
0.1
CEC Standby Consumption in W
0.5
Network Standby Consumption in W
Less than 2.0
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
( Antenna:Vertical :(W x D x H) in mm)
【 w/o Antenna :(W x D x H) in mm】
17.1× 13.3 × 6
( 17.1 x 13.3 x 8.5)
Weight in LBS
18.3
Weight in LBS (Packaging)
23.1
Power Supply
AC 120 V, 60 Hz
Speaker Impedance
4–16Ω/ohms
Pre-Amplifier Section
Input Sensitivity
200 mV
Frequency Response
10Hz–100 kHz — +1, –3dB (Direct mode)
S/N Ratio
98dB (IHF-A weighted, Direct mode)
FM section
Tuning Frequency Range
87.5–107.9 MHz
AM section
Tuning Frequency Range
520kHz–1710 kHz
What's in the Box
Main unit, remote control, batteries, AM/FM antennas, quick start guide, AC cord
