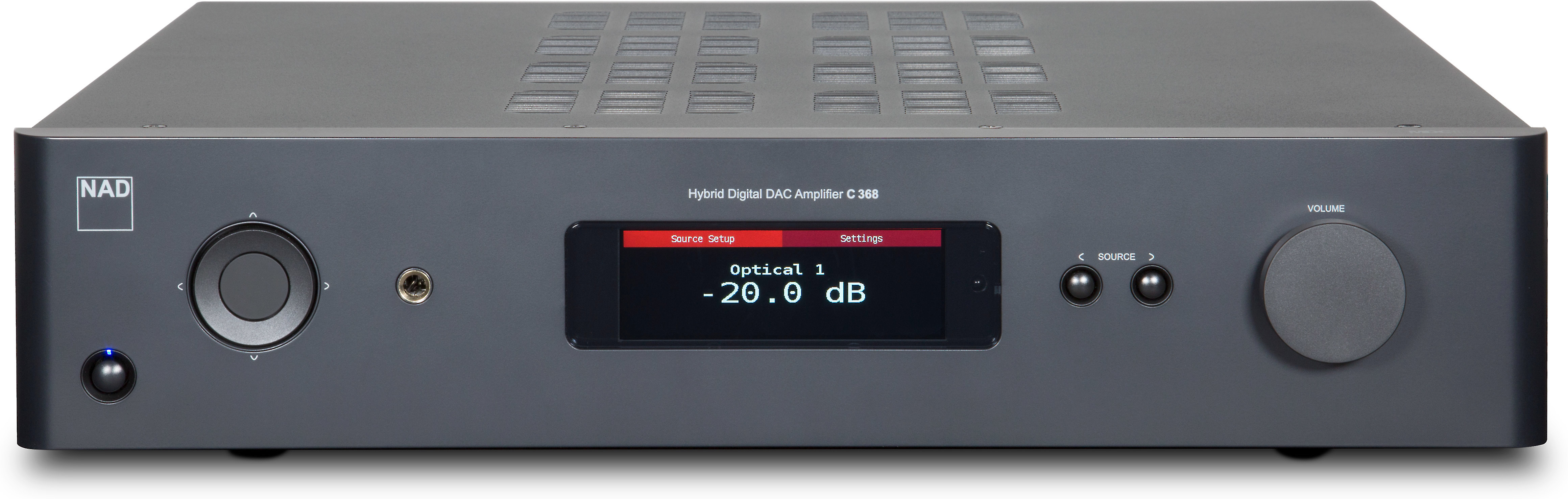

With the C 368 Hybrid Digital DAC Amplifier, your home audio system will never fall behind the pack. Thanks to our MDC technology, the C 368 is easily customisable and ready for all future features and upgrades. With the optional BluOS® module, the C 368 can connect to your network and be controlled through a smartphone, tablet, or desktop, and connect wirelessly to any other BluOS Enabled device to create a multi-room High Resolution Audio system. You can also instantly connect to the C 368 through Bluetooth, giving you the ability to stream wirelessly from any Bluetooth Enabled device, and if you’re a vinyl fan, you can also add a turntable. Enjoying music has never been so easy. A totally modern approach to amplification, the C 368 is the ultimate amp for any music lover’s system.
KEY FEATURES
80W x 2 Continuous power into 8 or 4 Ohms
Bluetooth A2DP with aptX supported
MM Phono input
Analogue line inputs
SPDIF coax and optical inputs
Speaker A, Speaker B
Stereo or Bridge mode configuration
Preamp/Subwoofer out
Headphone amplifier
MDC Slots for future upgrades
IR Remote
Smartphone Control App
12V Trigger in/out
IR in/out
RS-232 Serial port for control
Control4, Crestron, RTI, URC, AMX, Savant, Elan certified
PREAMPLIFIER
Line Input, Pre Out
THD (20Hz-20kHz)
<0.005% at 2V out
Signal/Noise Ratio
>106dB (IHF; A-weighted, ref. 500mV out, unity gain)
Channel Separation
>80dB (1kHz); >70dB (10kHz)
Input Impedance (R and C)
22 kilohm + 100pF
Maximum Input Signal
>4.5Vrms (ref. 0.1% THD)
Output Impedance
Source Z + 240 Ohm
Input Sensitivity
93mV (ref. 500mV out, Volume maximum)
Frequency Response
±0.03dB (20Hz-20kHz)
Maximum voltage output – IHF load
>4.5V (ref. 0.1% THD)
Tone Controls
Treble: ±7.0dB at 20kHz
Bass: ±7.0dB at 60Hz
Balance: -10dB
Phono Input, Pre Out
THD (20Hz-20kHz)
<0.01% at 2V out
Signal to Noise Ratio
>84dB (200 Ohm source; A-weighted, ref. 500mV out)
>76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)
Input Sensitivity
1.44mV (ref. 500mV out, Volume maximum)
Frequency Response
±0.3dB (20Hz-20kHz)
Maximum Input Signal at 1kHz
>80mVrms (ref. 0.1% THD)
Line Input, Headphone Out
THD (20Hz-20kHz)
<0.005% at 1V out
Signal/Noise Ratio
>110dB (32 Ohm loads; A-weighted, ref. 2V out, unity gain)
Frequency Response
±0.3dB (20Hz-20kHz)
Channel Separation
>60dB at 1kHz
Output Impedance
6 Ohms
GENERAL SPECIFICATIONS
Continuous Output Power into 4 Ohms and 8 Ohms (Stereo)
>80W (ref. 20-20kHz at rated THD, both channels driven)
Continuous Output Power into 8 Ohms (Bridge Mode)
300W (at 20-20kHz at THD 0.03%)
THD (20Hz-20kHz)
<0.03% (250mW to 80W, 8 Ohms and 4 Ohms)
Signal to Noise Ratio
>98dB (A-weighted, 500mV input, ref. 1W out in 8 Ohms)
Clipping Power
>95W (at 1kHz 0.1% THD)
Clipping Power (Bridge Mode)
>315W (at 1kHz 0.1% THD)
IHF Dynamic Power
8 Ohms 120W
4 Ohms 200W
2 Ohms 250W
IHF Dynamic Power (Bridge Mode)
8 Ohms 500W
4 Ohms 560W
Peak Output Current
>20A (in 1 Ohm, 1ms)
Damping Factor
>300 (ref. 8 Ohms, 20Hz and 6.5kHz)
Frequency Response
±0.3dB (20Hz-20kHz)
Channel Separation
>75dB (1kHz)
>70dB (10kHz)
Input Sensitivity (for 80W in 8 Ohms)
Line In: 470mV; Digital In: 21% FS
Sample Rate
up to 24 bit/192kHz
Frequency Band
2.402G-2.480G
Maximum Transmit Power (dBm)
7dBm ±2dBm
POWER CONSUMPTION
at Auto Standby ON and Network Standby OFF
0.5 Watts*
at Auto Standby ON and Network Standby ON
1.2 Watts**
OFF mode (Power switched OFF)
0.1 Watts
* – After 20 minutes of no user interface interaction and no active source input
** – With established wireless Bluetooth connectivity and 20 minutes of no user interface interaction and no active source input
NOTE: Bluetooth connectivity is always live when configured
WEIGHT & DIMENSIONS
Gross Dimensions (W x H x D)*
435 x 100 x 390mm (17 1/8 x 3 15/16 x 15 3/8)”
Net Weight
7.8kg (17.2lb)
Shipping Weight
10.1kg (22.3lb)
*Gross dimensions include feet, extended buttons and rear panel terminals
