SPUN-COPPER THERMOFORMED CRYSTALLINE POLYMER (TCP) WOOFERS
Thermoformed Crystalline Polymer (TCP) woofers are exceptionally light while being
extremely rigid and tightly packed – providing remarkable low frequency response,
with minimal cone breakup and distortion without degradation.
ALL-DIGITAL AMPLIFIER
The built-in, all-digital amplifier delivers ample power with high efficiency and true-tosource accuracy in reproduction, ensuring maximum efficiency for maximum output,
detail, and power.
FRONT-FIRING DRIVER
The high-performance driver provides deep bass and room placement flexibility.
LOW PASS CROSSOVER AND PHASE CONTROL
Ensures the subwoofer’s low-frequency tones blend with other Klipsch speakers and
establish the ideal level of bass for your room.

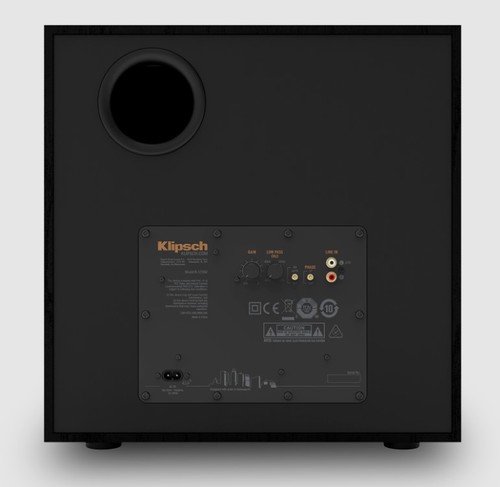

LINE/LFE INPUTS
Ensures compatibility with home theater receivers.
MDF CABINET WITH SCRATCH-RESISTANT, TEXTURED WOOD GRAIN VINYL
Stylish aesthetic with absolute durability that results in a seamless integration into
any décor.
HIGH QUALITY CABINET DESIGN
Reinforced 3/4” MDF construction with an all-new bracing design reduces cabinet
vibration for less audible coloration and improved sonic accuracy.
FRONT-MOUNTED LED POWER INDICATOR
Indicates when the system is on or off.

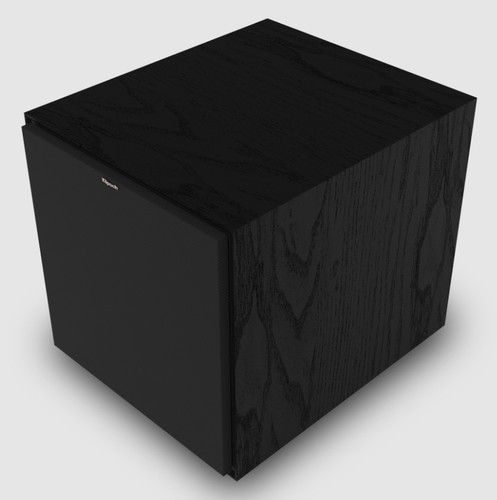

LOW PROFILE GRILLE
Adds a refined look that is acoustically transparent.
SPECIFICATIONS:
FREQUENCY RANGE 28Hz - 120Hz
MAXIMUM ACOUSTIC OUTPUT 118 dB
AMPLIFIER All Digital
AMPLIFIER POWER (CONT/PEAK) 200W/400W
AMPLIFIER FEATURES Volume, Low-pass, 0/180 phase, Auto Power On

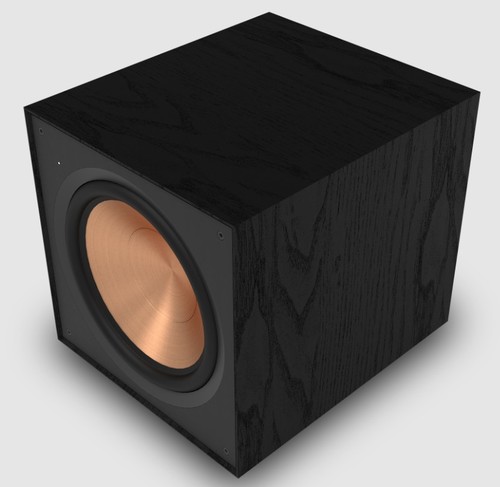

DRIVER COMPONENTS 12" high excursion spun-copper TCP woofer
ENCLOSURE MATERIAL MDF

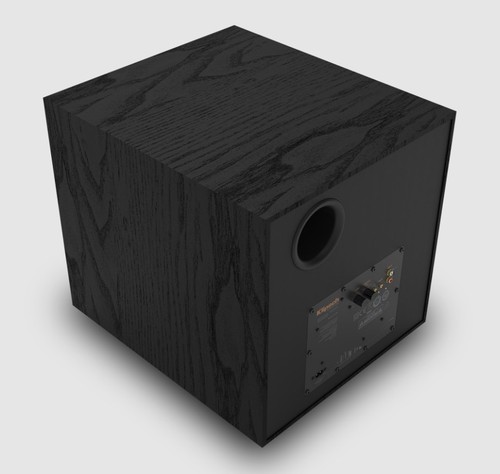

ENCLOSURE TYPE Bass-Reflex via rear-firing port
INPUTS Line level/LFE RCA jacks
HEIGHT INCHES (MM) 16.6" (421 mm)
WIDTH INCHES (MM) 16" (406 mm)
DEPTH INCHES (MM) 19.7" (500mm)
PRODUCT WEIGHT LBS (KG) 35 lbs (16.0 kg)
FINISHES Black Textured Wood Grain Vinyl
