FOCAL 100IC6ST

Key Points
• Product designed and developed in France by Focal
• Compact product with shallow mounting depth
• For in-ceiling or in-wall loudspeakers (1 product, 2 uses)
• Possible to connect two loudspeakers to the same amplifier output
• Ready-to-paint grille
61/2" (16,5 cm) Polyglass
cone. Natural midrange
without colouration and
rich bass.
Humidity resistant speaker.

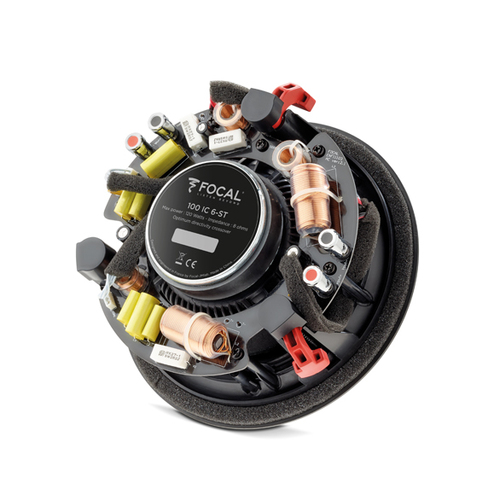

ODC crossover for controlled
directivity and wider sound
dispersion. Avoids having a
‘shower’ effect.

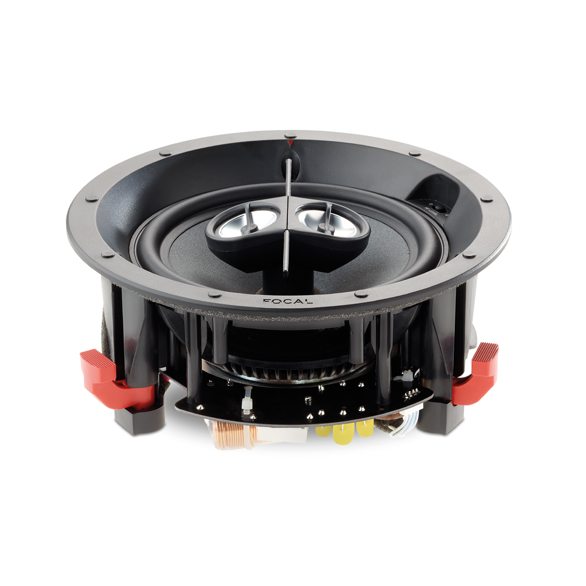

Double tweeter 1" (25 mm).
Aluminum inverted dome
tweeter. Improved sound
dispersion.
Ultra-rigid unibody.
No vibrations.
Adjustable tweeter level
(-3dB, 0dB, +3dB). Improved
treble adjustment according
to the acoustic environment.

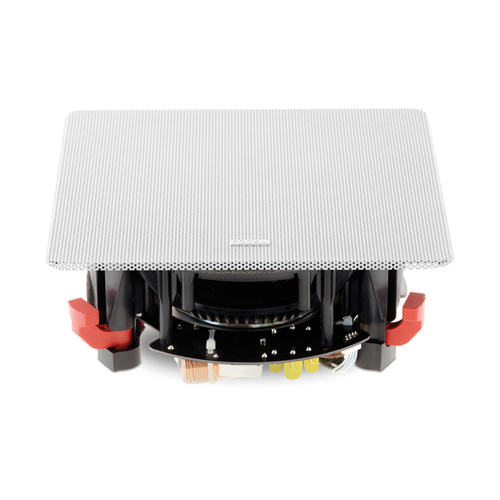

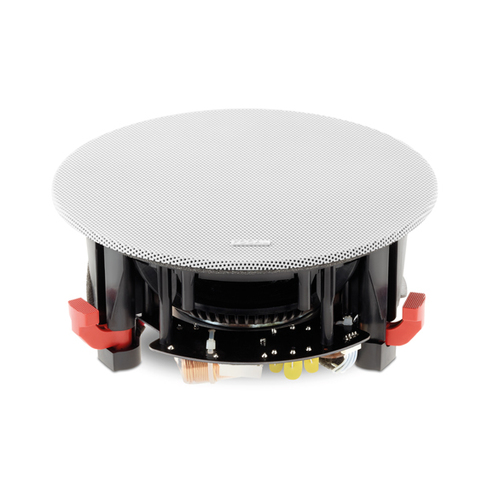

Magnetic grilles (round or
square) included with the
product.
4 mounting brackets with
optimised grips to ensure
quick and easy installation.
Screw system that prevents
screws from falling out when
dismantling the product.
Separation of left/right
channels. Improved stereo
effects.
Type In-celling - Stereo 2-way coaxial
Drivers 61/2" (16,5cm) Dual voice coil Polyglass Midbass.
2 x 1" (25mm) AI inverted dome Tweeters
Sensitivity (2.83V/1m) 89dB
Frequency response (+/-3dB) 60Hz-23kHz
Low frequency point (-6dB) 48Hz
Nominal impedance 2x8Ώ
Minimal impedance 2x6,7Ώ
Recommended amplifier power 25-100W
External dimensions (Ø/Depth) 83/16"x347/64" (208x95mm)
Cut-Out diameter 71/4" (184mm)
Depth from wall 337/64" (91mm)
Net weight (with front grille) 3.86lbs (1.75kg)
Packing dimensions (WxDxH) 105/8"x105/8"x611/16" (270x270x170mm)
Total weight (with packaging) 5.29lbs (2.40kg)
