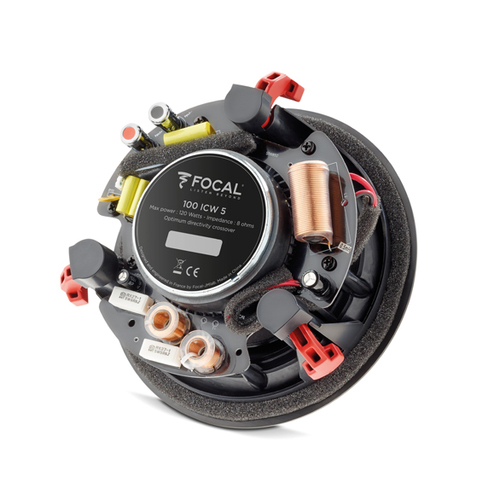

FOCAL 100ICW8

Key Points
• Product designed and developed in France by Focal
• Compact product with shallow mounting depth
• For in-ceiling or in-wall loudspeakers (1 product, 2 uses)
• Possible to connect two loudspeakers to the same amplifier output
• Ready-to-paint grille
8" (21 cm) Polyglass cone.
Natural midrange without
colouration and rich bass.
Humidity resistant speaker.
ODC crossover for
controlled directivity and
wider sound dispersion.
Avoids having a ‘shower’
effect.
Adjustable tweeter
level (-3dB, 0dB, +3dB).
Improved treble adjustment
according to the acoustic
environment.
4 mounting brackets with
optimised grips to ensure
quick and easy installation.
Screw system that prevents
screws from falling out when
dismantling the product.
Ultra-rigid unibody.
No vibrations.
360° tweeter rotation and 20°
inclination. Improved sound
spatialisation.
1" (25 mm) aluminum
inverted dome tweeter.
Improved sound
dispersion.
Magnetic grilles (round or
square) included with the
product.
Technical Specifications
Focal® is a trademark of Focal-JMLab®
- www.focal.com - SCAA180219/5
Type in-wall/In-celling 2-way coaxial
Drivers 8" (21cm) Polyglass Midbass.
1" (25mm) AI inverted dome Tweeter
Sensitivity (2.83V/1m) 90dB
Frequency response (+/-3dB) 53Hz-23kHz
Low frequency point (-6dB) 40Hz
Nominal impedance 8Ώ
Minimal impedance 6,9Ώ
Recommended amplifier power 25-150W
External dimensions (Ø/Depth) 949/64"x43/8" (248x111mm)
Cut-Out diameter 813/16" (224mm)
Depth from wall 47/32" (107mm)
Net weight (with front grille) 3.86lbs (1.75kg)
Packing dimensions (WxDxH) 123/16"
x 123/16"
x 71/4" (310x310x185mm)
Total weight (with packaging) 4.73lbs (2.60kg)
