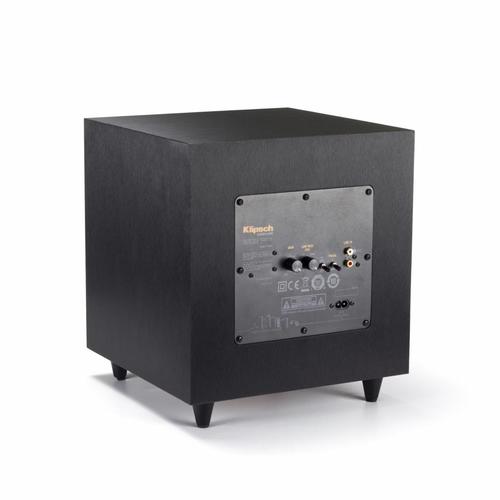

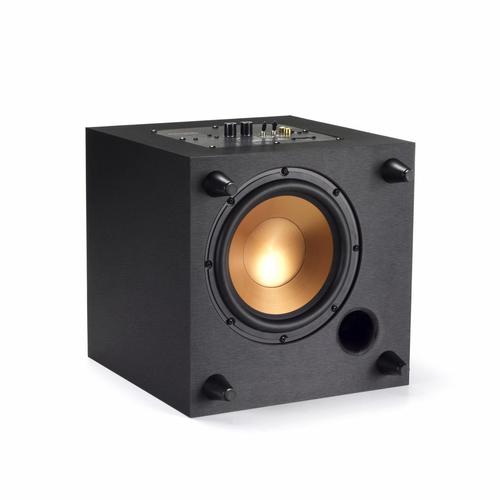

Klipsch R-8SW

SPUN COPPER IMG WOOFER
Injection Molded Graphite (IMG) woofers are exceptionally light while
being extremely rigid – providing remarkable low frequency response, with
minimal cone breakup and distortion.
COMPACT DESIGN
Compact cabinet design allows for discrete, flexible placement without
sacrificing cinematic and detailed low frequencies.
ALL-DIGITAL AMPLIFIER
The built-in all-digital amplifier delivers ample power with high efficiency
and true-to-source accuracy in reproduction.
DOWN-FIRING DRIVER
The high performance driver provides deep bass and placement flexibility.
LOW PASS CROSSOVER AND PHASE CONTROL
Allows you to blend the subwoofer’s low-frequency tones with other Klipsch
speakers as well as establish the ideal level of bass.
LINE/LFE INPUTS
Ensures compatibility with old and new receivers.
MDF CABINETS WITH BRUSHED POLYMER VENEER FINISH
Contemporary aesthetic with absolute durability that results in a seamless
integration into any décor.
FRONT-MOUNTED LED POWER INDICATOR
Let’s you know when the system is on or off.

SPECIFICATIONS
FREQUENCY RESPONSE 38Hz-120Hz +/-3dB
MAXIMUM ACOUSTIC OUTPUT 108dB
AMPLIFIER All digital
AMPLIFIER POWER 50W / 150W
DRIVE COMPONENTS 8” (20.3cm) high excursion, IMG, down-firing woofer
ENCLOSURE MATERIAL MDF
ENCLOSURE TYPE Bass Reflex via down-firing tube port
INPUTS Line level/LFE RCA jacks
HEIGHT 13.25" / 33.66 cm
WIDTH 11.75" / 29.85 cm
DEPTH 11.75" / 29.85 cm
WEIGHT 15.0 lbs (6.8 kg)
FINISH Brushed Black Polymer Veneer
BUILT FROM 2017
FEATURES Volume, Lowpass, Phase, Auto Power
PHASE Switchable 0-180 degrees
POWER CORD Detachable
PART NUMBERS NA (120V): 1063511
CE (230V): 1063512
