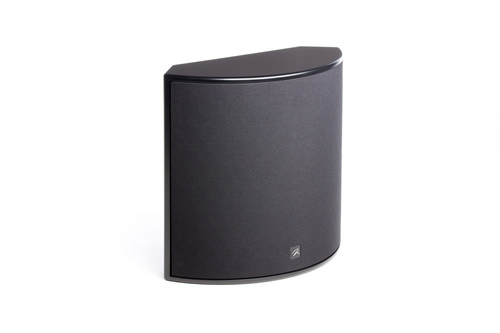

Martinlogan ElectroMotion® FX2

S P E C I F I C A T I O N S
Frequency Response
55–25,000 Hz ± 3 dB
Horizontal Dispersion
160°
Vertical Dispersion
30°
High Frequency Transducer
Two 1.25” x 2.4” (3.16cm x 6.1cm) Folded Motion
Transducers with 4.5” x 2.75” (11.4 x 6.98cm) diaphragm
Low Frequency Transducer
6.5” (16.51cm) paper cone with cast-aluminum
basket. Non-resonant asymmetrical chamber format
Sensitivity
91 dB/2.83 volts/meter
Impedance
5 Ohms. Compatible with 4, 6 or 8 Ohm rated amplifiers.
Recommended Amplifier Power
20–200 watts per channel
Crossover Frequency
2,300 Hz
Cabinet
Two bass-reflex ports
Components
Custom air core coil inductors. Polyester film capacitors
in series and low DF electrolytic capacitors in parallel.
Tweeter thermal/current protection
Inputs
Push style with banana jacks
Weight
16 lbs. (7.3 kg)
Dimensions
14.9” x 14” x 6.8” (37.9cm x 35.5cm x 17.2cm)

Dual Folded Motion XT tweeters in a wide-dispersion array guarantee the
ElectroMotion FX2 is ideally suited for surround channel applications in
even the most demanding home theaters.

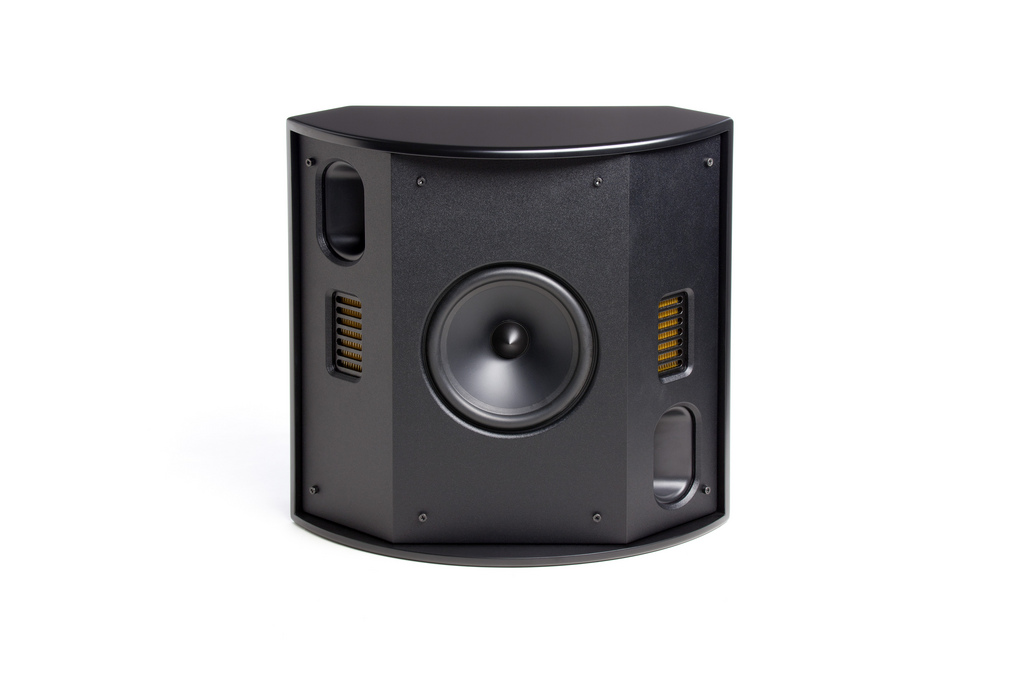

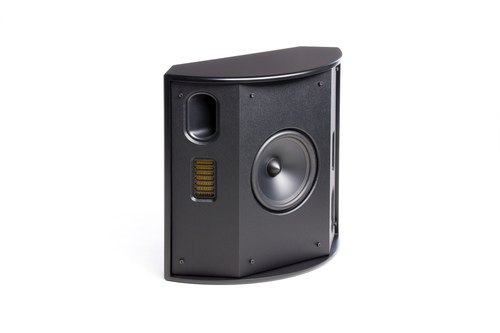

The EM-FX2 features dual Folded Motion XT tweeters in a wide-dispersion array ideally suited for surround
channel applications. A single 6.5-inch doped fiber-cone woofer provides powerful low-frequency
extension. The EM-FX2 is designed to corner mount, wall mount or angle-wall mount for versatile placement
in any room.
MartinLogan’s larger, low distortion Folded Motion XT tweeter boasts a radiating
surface 40% larger than those found in the award-winning Motion® Series products.
This substantial leap in size increases the bandwidth and efficiency of the highperformance
tweeter for effortless surround channel performance.
