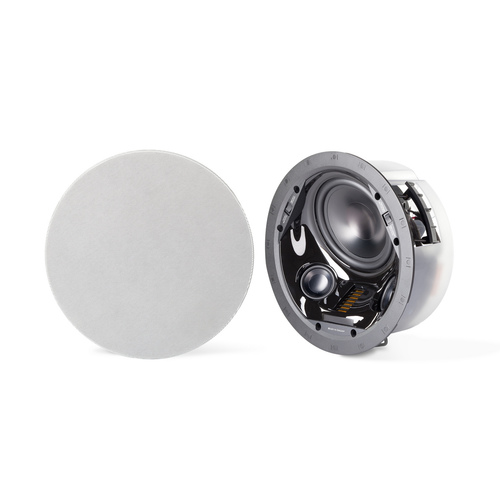

Vanquish is the ultimate reference in-ceiling speaker for left/right/center or
surround channel applications.

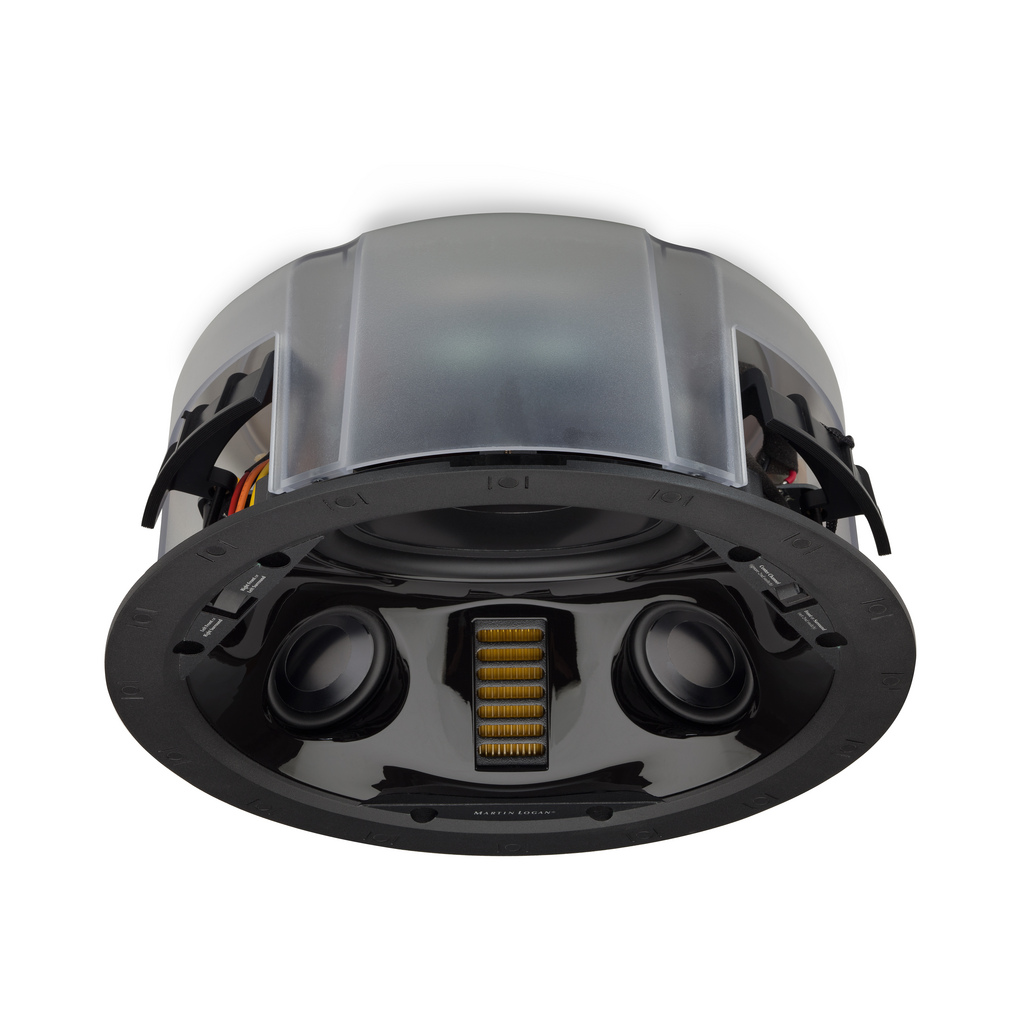

Massive bass performance comes from the
8-inch black aluminum cone woofer while two 3.5-inch black aluminum midwoofers
and a low-distortion Folded Motion™ XT tweeter give it richly detailed
highs, and an open & revealing midrange.

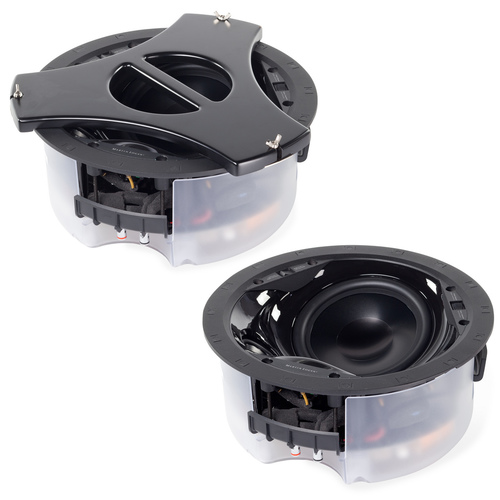

Vanquish’s robust mounting-lock system is coupled with a rigid aluminum chassis.
When not in use, the constant-control mounting locks are held securely within a
self-contained housing. When moved into place during installation, they couple the
chassis firmly to the ceiling. If the speaker is removed, the locks retract and latch
themselves back in their housings. Installers rejoice! Each Vanquish comes with a
one-handed installer’s handle (shown left) to easily hold during installation. Left/
Center/Right/Surround toggle switches allow performance to be tailored to match
the specific application post-installation. Chassis can be rotated allowing tweeter to
be precisely pointed at the listening area.
Precision-Built, Advanced-Topology Vojtko™ Crossover
Vojtko crossover topology ensures vanishingly low distortion and seamless driver integration. Each crossover is
hand-built on a super-thick, double-layered black PC board using the finest polypropylene and low-DF electrolytic
capacitors, massive air coils, custom wound inductors and 16-gauge copper wire, with thermal and current
protection. Every note and nuance of the audio signal is perfectly preserved.
SPECIFICATIONS
Frequency Response
37–25,000 Hz ± 3 dB
Dispersion
80° x 30°
High Frequency Driver
1.25” x 2.4” (3.2cm x 6.1cm) Folded
Motion XT Transducer with 4.5” x 2.75”
(11.4cm x 7cm) diaphragm.
Mid Frequency Transducer
Two 3.5” (8.9cm) aluminum cone with stamped
steel basket. Concave dust cap.
Low Frequency Transducer
8” (20.3cm) aluminum cone with cast aluminum
basket. Concave dust cap.
Sensitivity
93 dB @ 2.83 volts/ meter
Impedance
4 Ohms. Compatible with 4, 6
or 8 Ohm rated amplifiers.
Recommended Amplifier Power
20–300 watts
Crossover Frequency
400, 850 & 2000 Hz
Weight
16 lbs. (7.3 kg)
Dimensions
14.4” x 6.3”
(36.5cm x 16cm)
Cut-Out Dimensions
13.1” (33.3cm)
Depth Required Behind Wall Surface
6.1” (15.5cm)
Projection From Wall Surface
0.2” (0.6cm)
Specifications are subject to change without notice.
