The Pinnacle of Discreet High-Performance Audio
Introducing three of the most ambitious architectural speakers ever created; Axis, Edge & Vanquish, all part of the new Stealth Architectural Series. Each speaker utilizes our larger, low distortion Folded Motion™ XT tweeter, along with black-aluminum, high-excursion bass and mid-range drivers, an advanced topology crossover network with polypropylene and low-DF electrolytic capacitors, custom wound inductors, and thermal and current protection. Premium wire connections, a gloss piano-black speaker baffle that hides all mounting hardware, solid one-piece cast aluminum chassis and bezel-less magnetic grille put the Stealth Series in a class of its own.
Design and Aesthetics
Stealth Series speakers are designed to disappear visually into the room, and each one has a completely bezel-less, low-profile, paintable grille for the ultimate stealth installation. Our in-house design and engineering team also minimized the grille's perforated metal holes to create a more discreet look, without compromising the quality of sound. A magnetic system secures grilles easily into place, reducing the risk of warping or damage during installation.
We've also refined the look underneath the grille for those who want to show off their high-performance in-wall or in-ceiling speakers. The driver complements are held securely in place by a flush mounted 3/4-inch solid, high-gloss piano black baffle that hides all mounting hardware.
Advanced Technology
Key to their sophisticated sound is an advanced topology Vojtko™ crossover network. Each crossover is built on top of double-layered, super-thick, black PC boards and constructed with the highest-quality components. Internals including massive air-core coils, thick, high-purity 16-gauge copper wire, and low-distortion polypropylene capacitors ensure that every nuance of the audio signal is preserved.
Quick, Trouble-Free Installation

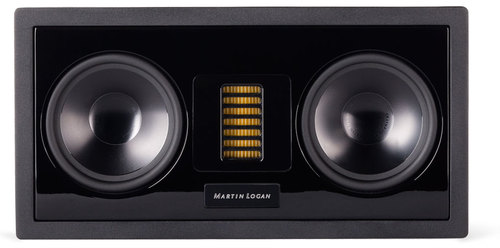

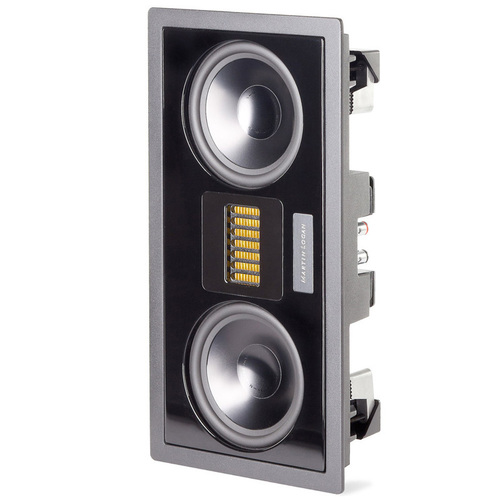

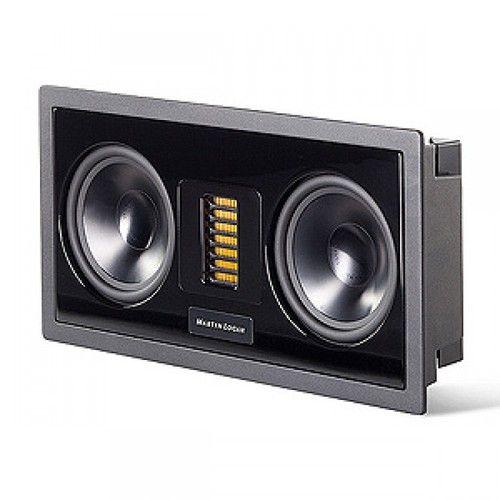

Critical to architectural products is their ease of installation. The Stealth Series continues MartinLogan's tradition of innovative engineering solutions which allow custom retailers to quickly and easily install their products. Each model features easy push style inputs and an extremely robust mounting-lock system that couples with the speaker's rigid aluminum chassis when installed. Axis and Edge in-wall models feature rotatable tweeters, which allows installers complete flexibility for both horizontal or vertical installation. Axis is sized to fit perfectly between standard 16-inch stud spacing for center channel applications.
Vanquish includes two toggle switches to tailor performance for whatever application is intended; either front left, front right, center channel, surround left or surround right.
SPECIFICATIONS
Frequency Response
45–25,000 Hz ± 3 dB
Dispersion
80° x 30°
High Frequency Driver
1.25” x 2.4” (3.2cm x 6.1cm) Folded
Motion XT Transducer with 4.5” x 2.75”
(11.4cm x 7cm) diaphragm.
Low Frequency Transducer
Two 5.25” (13.4cm) aluminum cone with cast
aluminum basket. Concave dust cap.
Sensitivity
94 dB @ 2.83 volts/ meter
Impedance
4 Ohms. Compatible with 4, 6
or 8 Ohm rated amplifiers.
Recommended Amplifier Power
20–250 watts
Crossover Frequency
700 & 2000 Hz
Weight
13 lbs. (5.9 kg)
Dimensions
15.2” x 7.8” x 3.9”
(38.6cm x 19.9cm x 9.9cm)
Cut-Out Dimensions
14.4” x 7.1” (36.7cm x 18cm)
Depth Required Behind Wall Surface
3.7” (9.4cm)
Projection From Wall Surface
0.2” (0.6cm)
Specifications are subject to change without notice.
