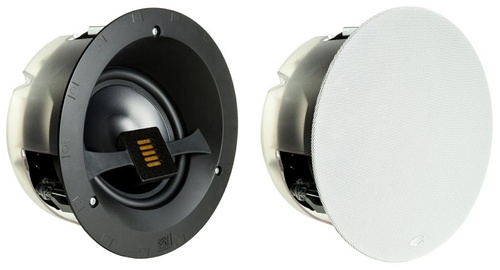

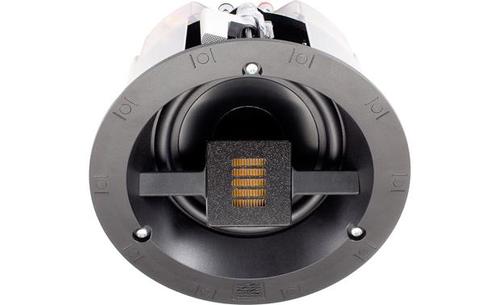

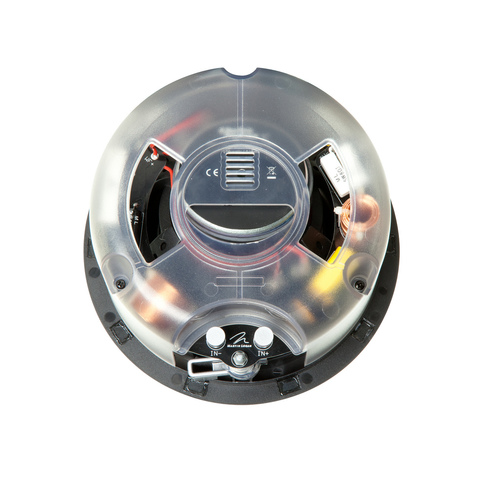

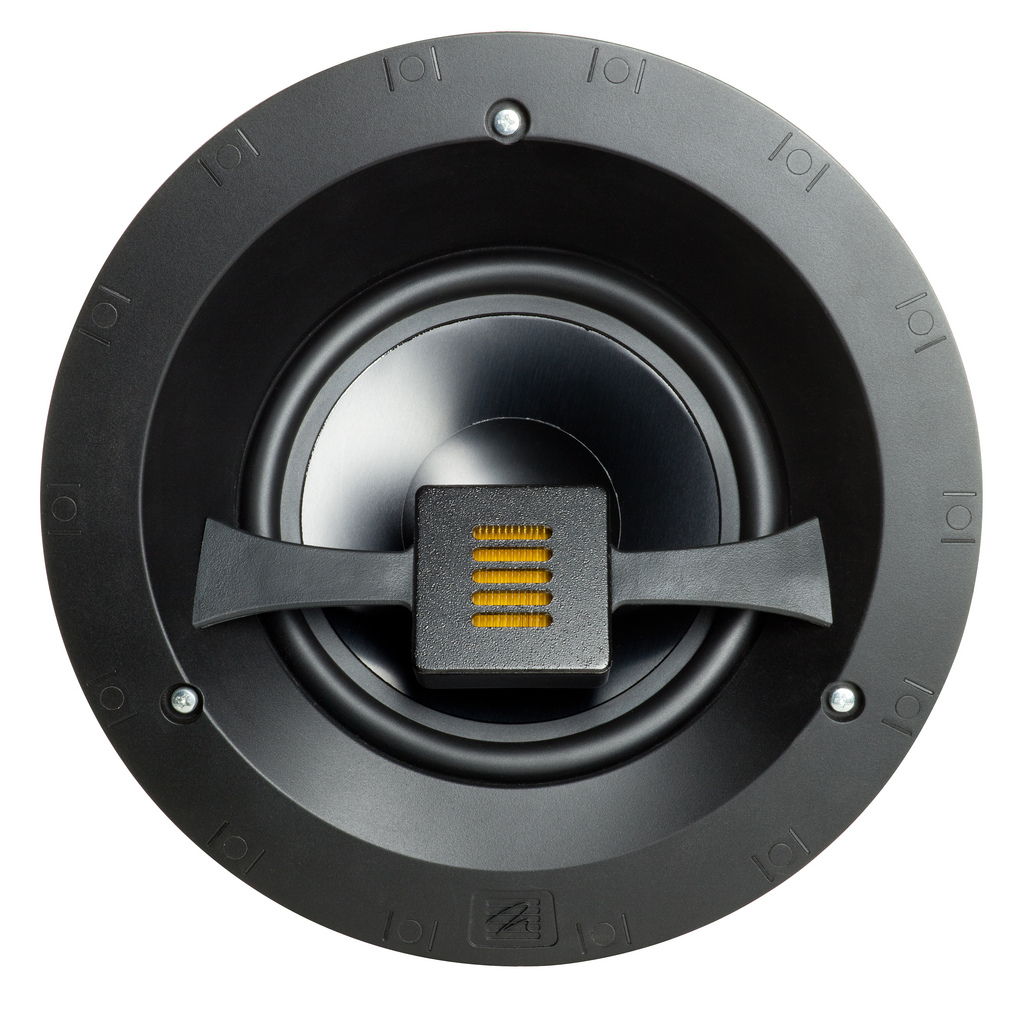

MartinLogan ElectroMotion IC

The EM-IC is a premium high-performance in-ceiling speaker that uses a
6.5-inch aluminum cone woofer and angled Folded Motion™ tweeter. The
speaker is rotatable to aim sound.

 Folded Motion™ Tweeter

MartinLogan's exquisite Folded Motion tweeter boasts a radiating surface 8-times larger than a typical 1" dome tweeter. The Folded Motion tweeter works by moving air (which creates sound) perpendicular to the folded ridges of the diaphragm, similar to how an accordion works.

This extremely low mass diaphragm "squeezes" air and requires almost 90% less excursion than the typical 1" dome tweeter, which drastically minimizes distortion while providing a lightning fast response time. The increased surface area also provides a wide, yet controlled sound dispersion to create a realistic and carefully etched sound stage.

Stealthy Grilles

MartinLogan's new architectural speakers feature ultra-low profile, paintable micro perforated grilles with no visible bezel for near invisible integration into any wall or ceiling. A magnetic system secures grilles easily into place, reducing the risk of warping or damage during installation.

S P E C I F I C A T I O N S
Frequency Response
47–25kHz ±3dB
Horizontal Dispersion
80°
Vertical Dispersion
80°
Sensitivity
90 dB/2.83 volts/meter
Nominal Impendance
4 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers.
Recommended Amplifier Power
20-200 watts per channel
Crossover Frequency
2,600 Hz
High Frequency Transducer
1” x 1.4” (2.6cm x 3.6cm) Folded Motion Transducer with
5.25” x 1.75” (13.3cm x 4.4cm) diaphragm.
Low Frequency Driver
6.5” (16.5cm) aluminum cone with cast aluminum basket.
Concave dust cap.
Weight
5lbs. (2.3kg) each
Overall Dimensions
9.1” (23.1cm) Diameter
5.325” (13.5cm) Depth
Cut-Out Dimensions
8.2” (20.8cm) Diameter
Depth Required Behind Wall Surface
5.2” (13.2cm)
Projection From Wall Surface
.125” (.3cm)
Specifications are subject to change without notice.
