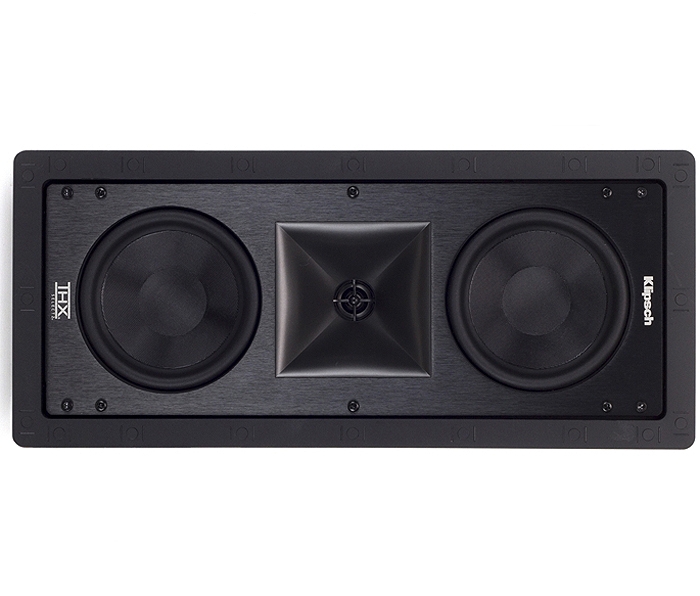

Klipsch PRO-6502-L-THX

THX® SELECT2 CERTIFIED
Delivers effortless dynamic range and brings superior sound to larger areas
thanks to its highly regarded THX Select2 certification. It not only delivers
consistent compelling audio to larger-sized rooms it also brings real cinema
sound to the comforts of home without taking up any floor space.
CINEMA QUALITY SOUND
Employs high output fiberglass woofers for powerful bass impact, while
a 1-inch titanium tweeter mated to a new symmetrical pattern 90 x 90
square Tractrix® Horn generates flat in-room frequency response with high
efficiency and low distortion.
MAXIMUM INSTALLATION RELIABILITY
This in-wall speaker also consistently delivers thrilling, realistic sound,
whether it’s installed horizontally or vertically. It features sure-grip
mounting dogs that provide even pressure against drywall for longterm
installation reliability, and includes a paintable grille that blends in
perfectly with any décor.
UNLIMITED FLEXIBILITY
Timbre matched to all of our THX-certified products, so you can mix and
match to create an unbeatable, discreet stereo or home theater system
that’s just right for you.
EDGE-TO-EDGE GRILL
Covering the whole of the speaker makes painting the product both
simpler and quicker. Premium Neodynium magnets make it easy to install
and remove and ensure a secure and flush fit without any moving parts.
The flat grill allows better harmonization with today’s modern interior
designs and disappear into the background, enabling sound to take
center stage.
SPECIFICATIONS
SYSTEM 2-way In-wall
FREQUENCY RESPONSE 46Hz-20kHz +/-3dB
POWER HANDLING (Cont/Peak) 100W/400W
RECOMMENDED AMP POWER 150W
SENSITIVITY 92dB @ 2.83V / 1m
IMPEDANCE 8 Ohms switchable
HIGH FREQUENCY DRIVER 1” (2.5cm) Titanium diaphragm compression driver mated
to 90° x 90° square Tractrix® Horn
HIGH FREQUENCY CROSSOVER 2100Hz & 1200Hz
LOW FREQUENCY DRIVER Dual 5.25” (13.3cm) high-output, fiberglass cone woofers
ENCLOSURE MATERIAL MDF & Aluminum motorboard /ABS frame
ENCLOSURE TYPE Infinite baffle, front flush with wall
HOLE DIMENSION 16.5” (41.9cm) H x 6.5” (16.5cm) W
DIMENSIONS 17.75” (45.1cm) H x 8” (20.3cm) W
MOUNTING DEPTH 3.75” (9.5cm)
WEIGHT 9.6lbs (4.4kg)
FINISH White (paintable)
3502 WOODVIEW TRACE INDIANAPOLIS, IN 46268 | KLIPSCH.COM
All specifications are subject to change without notice. ©2014 Klipsch Group, Inc. Klipsch, Keepers of the Sound and Tractrix are registered
trademarks of Klipsch Group, Inc. registered in the US and other countries. A wholly-owned subsidiary of Voxx International Corporation
SEAMLESS HIGH PERFORMANCE
The Klipsch Professional Series introduces a new line of high-performance
architectural speakers unlike any you’ve heard before. Superior acoustic
technology makes the Professional Series the most dynamic, powerful,
direct-radiating speakers available.
