הספק
6Ohms , 1kHz :5X100W DIN
6Ohms , 1kHz ,0.09%THD :5X70W RMS
מאפייני מוצר
מספר ערוצים
אזורים מוגברים
מפרט פרטני
הגברת יציאות לכל ערוץ (1kHz (10%THD
הגברת יציאות לכל ערוץ (20Hz-20kHz ( 0.06%THD
פורמטי שמע נתמכים
Dolby TrueHD
Dolby Digital Plus
תכונות מיוחדות לאודיו
Dialog Level Adjustment
Dialogue Lift
תכונות מיוחדות לווידאו
ARC החזרת אודיו מ HDMI
מעביר ומשפר תמונה ל-4K

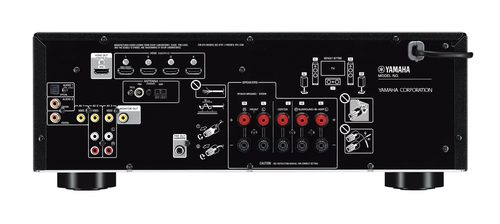

חיבורים
HDMI IN
HDMI OUT
כניסה / יציאה קומפוזיט
כניסה / יציאה אודיו אנלוגי
כניסה / יציאה אודיו דיגיטלי אופטי
כניסה / יציאה אודיו דיגיטלי Coaxial
יציאות PREOUT
רדיו טיונר FM
4
1
3 / 1
3 + AUX מקדימה / 0
1 / 0
2 / 0
SUBWOOFER
כן
מידות
15.1 ס"מ
43.5 ס"מ
31.5 ס"מ
7.7 ק"ג
איכות שמע ברמה גבוהה
ממיר Burr-Broun 192Hz\24 Bit -DAC לכל הערוצים
5.1 ערוצים לקבלת מעטפת צליל רחבה ורבת עוצמה
תומך בכל פורמטי הסראונד המתקדמים ביותר:Dolby Digital, Dolby Digital Plus , Dolby TrueHD
DTS High Resolution Audio ,DTS Master Audio, DTS-HD
כפתורים לגישה ישירה- SCENE
iPod/iPhone Compatibility
תמונה באיכות גבוהה
תמיכה (Deep Colour (30/36 bit
תמיכה מלאה בשידור HDTV עד p1080 ,הפורמטים הנפוצים בכל מכשירי הטלוויזיה המתקדמים כיום
כניסות ויציאות HDMI- HDMI כולל מערכת ARC+CEC מעביר
תלת מימד 3D וגם רזולוציה 4K
תכונות ייחודיות
OSD - תצוגת תפריטים על גבי מסך הטלוויזיה להפעלה פשוטה וידידותית למשתמש
כניסת USB לנגינה קבצים:WAV/MP3/WMA/MPEG4-AAC
YPAO לכוונון אוטומטי של מערכת הסאונד בלחיצת כפתור אחת
שלט רחוק חכם אוניברסאלי
תמיכה בתקן HDMI CEC
רדיו דיגיטאלי AM/FM
40 תחנות רדיו ניתנות לשמירה בזיכרון
סראונד
CINEMA DSP 3D -מגוון תוכניות עשיר
Compressed Music Enhancer מצב שמיעה מיוחד לאות מקובץ

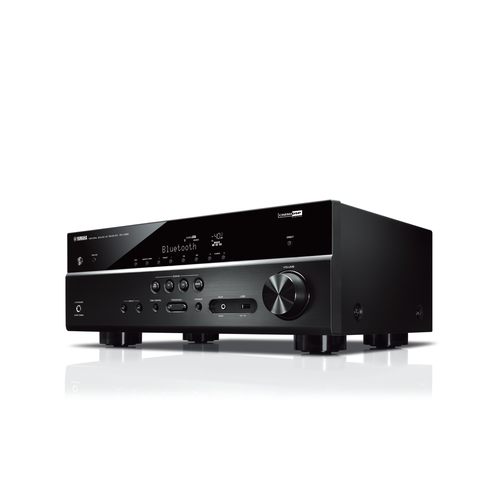

5.1-channel AV receiver with fully discrete audio construction plus many advanced functions.
5-channel powerful surround sound
--- 70 W per Channel (6 ohms, 20 Hz-20 kHz, 0.09% THD, 2-ch driven)
--- 100 W per Channel (6 ohms, 1 kHz, 0.9% THD, 1-ch driven)
--- 135 W per Channel (6 ohms, 1 kHz, 10% THD, 1-ch driven)
Discrete amp configuration
Bluetooth® for wireless music streaming
Bluetooth Output for convenient music streaming
Compressed Music Enhancer for Bluetooth
HDMI® (4 in / 1 out) with 4K Ultra HD full support, HDR Video including Dolby Vision and Hybrid Log-Gamma, and BT.2020
Front panel USB Digital Connection for USB thumbdrives
YPAO™ sound optimisation for automatic speaker setup
Dialogue Level Adjustment for proper sound balance with dialogue and vocals
Virtual CINEMA FRONT provides virtual surround sound with 5 speakers in front
Multi-language colour OSD capable of displaying cover art
ECO mode operation for about 20% less power consumption
Bluetooth®-Compatible for Wireless Music Streaming
This AV receiver is equipped with Bluetooth functionality to let you enjoy easy wireless music playback from smartphones and other devices. The Compressed Music Enhancer from Yamaha is now optimised for Bluetooth audio transmissions to ensure that your music will have vivid, lively sound quality during wireless playback.
Bluetooth Output for Convenient Music Streaming
The RX-V383 is equipped with the latest Bluetooth technology, making wireless operation more convenient than ever. You can stream music from the RX-V383 to Bluetooth headphones for private listening or to Bluetooth speakers.
4K Ultra HD Full Support with 4K / 60p, HDCP2.2, HDR Video Including Dolby Vision and Hybrid Log-Gamma, and BT.2020 Pass-through
This AV receiver completely supports with latest HDMI® standards. Thanks to transmission of 4K video at 60 frames per second pass-through, you can fully enjoy the high definition video quality of 4K without degradation. It also adheres to the HDCP2.2 copyright protection standard for 4K video transmission. It also supports HDR (High Dynamic Range) Video including Dolby Vision and Hybrid Log-Gamma which provides incredible contrast, smooth tone and rich, bright colours. Furthermore it supports the wider colour gamut of BT.2020 pass-through. This AV receiver is also compatible with 3D, Audio Return Channel and CEC for easy operation.
*Dolby Vision and Hybrid Log-Gamma will be available via future firmware update.
Discrete Amp Configuration for High Sound Quality
This AV receiver was designed with a strong focus on achieving exceptionally high sound clarity. It employs a discrete amp configuration and a low jitter PLL circuit, which contribute to its excellent audio performance.
AV Setup Guide App Makes System Setup Easier
AV Setup Guide is an app that makes it much easier to perform receiver setup, and also assists you with cable connections between the AV receiver and source devices. It guides you through various settings such as speaker connections, TV and source device connections and power amp assignment. System illustrations and actual AV receiver images help you understand how to make the connections between devices, for much quicker system setup. It is available in multiple languages. Designed for iOS and Android tablet.
SCENE for One-Touch Start
Pressing a SCENE button powers on the AV receiver and selects the input source and DSP mode. You can re-set the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.
YPAO™ Sound Optimisation for Automatic Speaker Setup
YPAO analyses the room acoustics and adjusts various audio parameters for optimum sound in just a few minutes. It’s like having a professional installer calibrate your system.
HD Audio with CINEMA DSP
Yamaha’s exclusive CINEMA DSP technology supports playback of HD Audio (Dolby TrueHD, DTS-HD Master Audio, etc.), providing natural and expansive sound imaging.
Virtual CINEMA FRONT Provides Virtual 5-channel Surround Sound with High Quality and Resolution
Even when it is impossible to install surround speakers behind the listening position, Virtual CINEMA DSP reproduces virtual 5-channel surround sound filled with realism, with only two front speakers. With Virtual CINEMA FRONT, you will enjoy virtual 5-channel surround sound with higher quality and resolution by installing surround speakers at the front. You get more flexibility to arrange your speakers inside the room, along with easy enjoyment of high quality surround sound.
Extra Bass Provides Rich Bass Reproduction, Even with Small Speakers
Yamaha’ s exclusive low-range enhancement technology delivers richer bass than you expect from the speaker size while maintaining good localisation and sound balance even with compact front speakers. When a subwoofer is used, it improves the volume of the entire low range of the speaker system, not only the front speakers, but also enhancing the bass from the subwoofer. You'll enjoy video and music with sound that has exceptional power and presence.
Subwoofer Trim for Improved Sound Imaging
The Subwoofer Trim control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused sound stage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is “pushed” toward the subwoofer. Subwoofer Trim takes care of this by separating the low subwoofer frequencies cleanly, thus stabilising the front stage while providing a well-balanced enhanced bass sound.
ECO mode Lowers Power Consumption by 20%*
Yamaha’s new ECO mode reduces power consumption by about 20%. It can be set from the top of the GUI menu.
*Compared to power consumption when ECO mode is off (Yamaha measurement).
Selectable Auto Power Standby
Auto Power Standby lets you save energy by selecting to turn off the power after 20 minutes, 2, 4, 8 or 12 hours.
